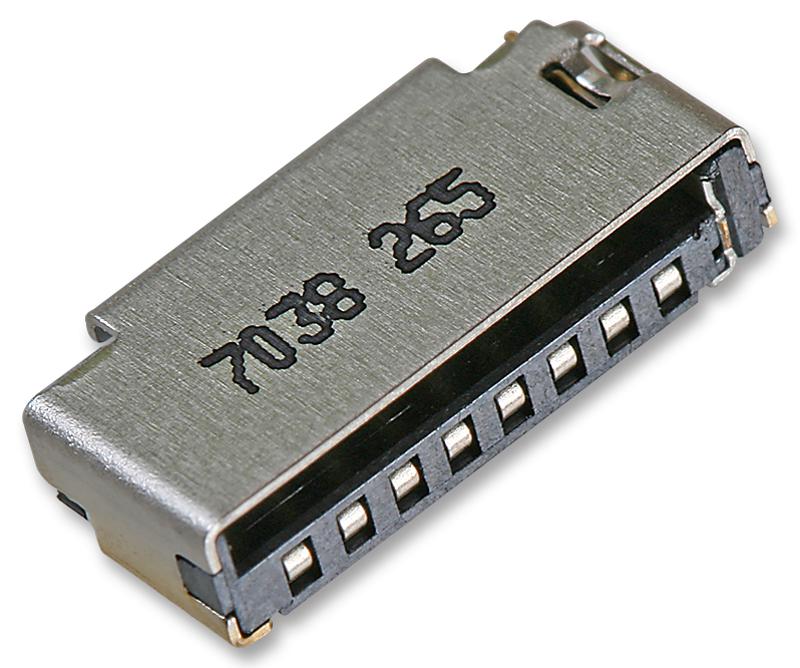

MOLEX 473092651 microSD Card Connector
The microSD Memory Card Connector is a 1.10mm pitch header designed for reliable microSD card insertion with a detect switch feature. It features a height of 2.65mm, gold plating with a minimum thickness of 0.762um, and high-temperature thermoplastic resin construction. This connector supports up to 8 circuits, withstands 10,000 mating cycles, and operates within a temperature range of -40°C to +85°C. Suitable for portable storage, it mates with standard SIM and microSD cards, ensuring secure connection and easy installation in compact devices.
MOLEX 473092651 microSD Card Connector Specifications:
- Pitch - Mating Interface: 1.09mm
- Material - Metal: Phosphor Bronze
- Material - Resin: High Temperature Thermoplastic
- Plating - Mating: 0.762um Gold
- Plating - Termination: 0.051um Gold
- Height: 2.65mm
- Durability: 10,000 mating cycles
- Operating Temperature Range: -40°C to +85°C
- Maximum Current per Contact: 0.54A
- Maximum Voltage: 5V DC
- Number of Circuits: 8
- Entry Angle: 90°
- PCB Mounting: Normal
- Packaging: Embossed Tape on Reel
- Surface Mount: Yes
- Reflow Capable: Yes
- RoHS Compliance: Yes
Buy the Molex 47309-2651 – Reliable microSD Card Connector for Industrial Applications
Enhance your portable and industrial storage devices with the Molex microSD Card Connector. Featuring a 1.10mm pitch, gold-plated contacts, and a detect switch, this connector offers reliable insertion, excellent durability with 10,000 mating cycles, and a wide operational temperature range of -40°C to +85°C. Designed to support up to 8 circuits, it ensures secure and stable microSD card connections for various applications. Easy to install with surface mount capabilities, it is RoHS compliant and ideal for compact electronic systems requiring dependable data transfer and storage.
Get Molex 47309-2651 today—built for precision, durability, and secure microSD card connections in portable and industrial devices.
Frequently Asked Questions
Where can I buy MOLEX 473092651?
You can click on the BUY or RFQ button to purchase 473092651 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 473092651?
You can download the 473092651 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 473092651?
MOLEX
