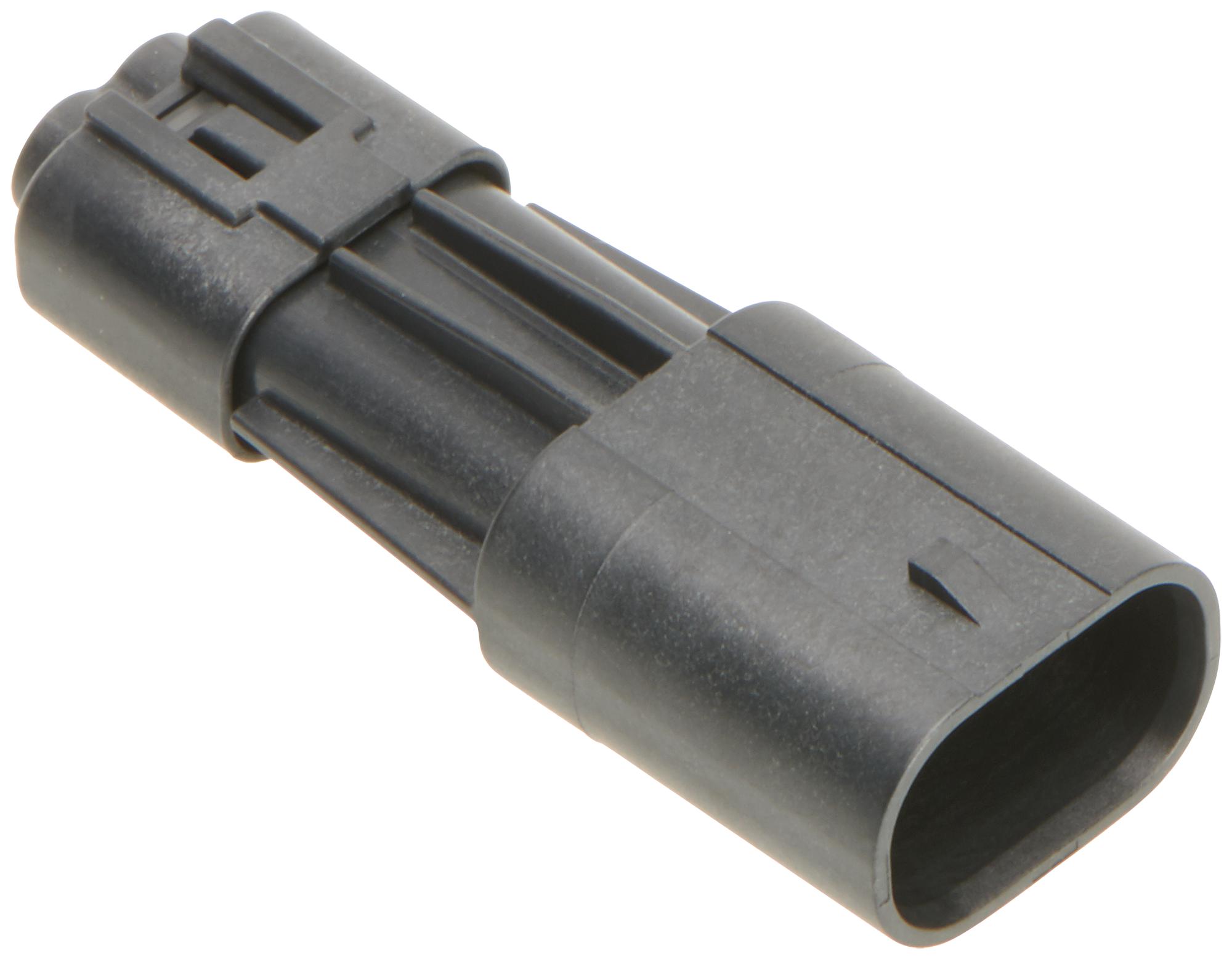

MOLEX 2077780002 Squba Sealed Plug Assembly
The MOLEX 207778-0002 Squba Sealed Plug Assembly is a robust connector solution for wire-to-wire applications requiring a high degree of environmental protection. Designed with a 3.6mm pitch and a single-row configuration, it supports two circuits and is ideal for power and signal transmission in demanding environments. The nylon resin construction and keyed design ensure secure and reliable connections, while its compact size makes it suitable for a variety of applications. It is RoHS compliant and features a temperature operating range of -40°C to +105°C.
MOLEX 2077780002 Squba Sealed Plug Assembly Specifications:
- product_family: Crimp Housings
- series: 207778
- application: Power, Signal, Wire-to-Wire
- circuits_maximum: 2
- color_resin: Black
- glow_wire_capable: Under Evaluation
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 3.210
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 3.60mm
- pitch_termination_interface: 3.60mm
- polarized_to_mating_part: Yes
- temperature_range_operating: -40°C to +105°C
- upc: 191130533480
