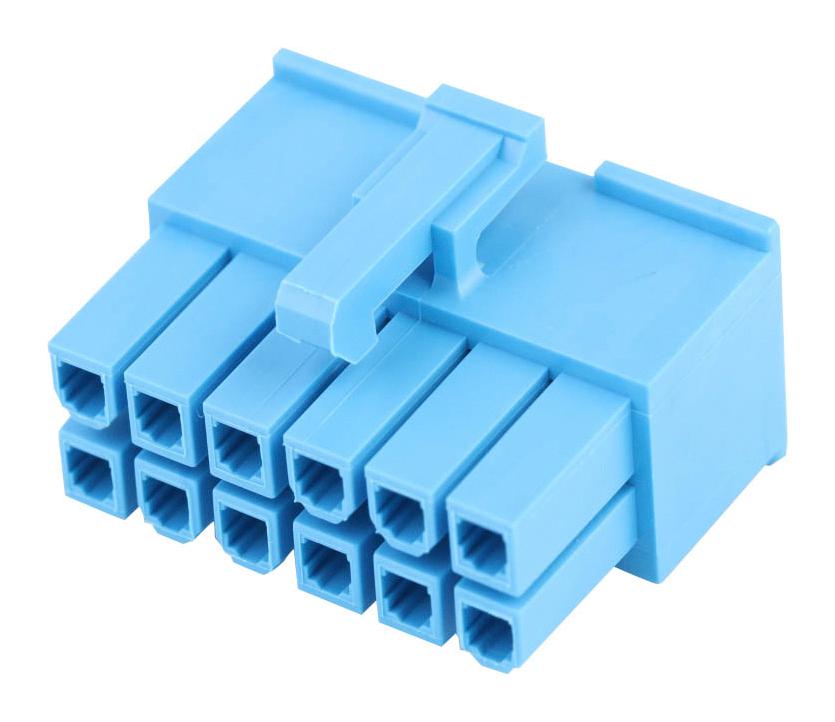

MOLEX 469921040 Mini-Fit Versa Color Receptacle
The MOLEX 46992-1040 Mini-Fit Versa Color Receptacle Housing is a versatile connector solution for power applications, including wire-to-board and wire-to-wire connections. This housing, part of the 46992 series, is made from durable Nylon 6/6 and is UL 94V-0 rated for enhanced safety. It features a dual-row design accommodating 10 circuits, and is glow-wire capable, making it suitable for a range of industrial and commercial applications. The housing is polarized to the mating part and includes a locking mechanism for secure connections.
MOLEX 469921040 Mini-Fit Versa Color Receptacle Specifications:
- circuits_maximum: 10
- color_resin: Blue
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 2.140
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°C
- upc: 195842021945
- series: 46992
- product_family: Crimp Housings
- application: Power, Wire-to-Board, Wire-to-Wire
- material_info_drawing_numbers_packaging_specification: PK-5557-002-000
- material_info_drawing_numbers_product_specification: PS-5556-001-001
- material_info_sales_drawing: SD-46992-0000-000
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit Versa Color Plug 46993, Mini-Fit Versa Color Header 172447
- use_with: Mini-Fit Female Crimp Terminal 5556
