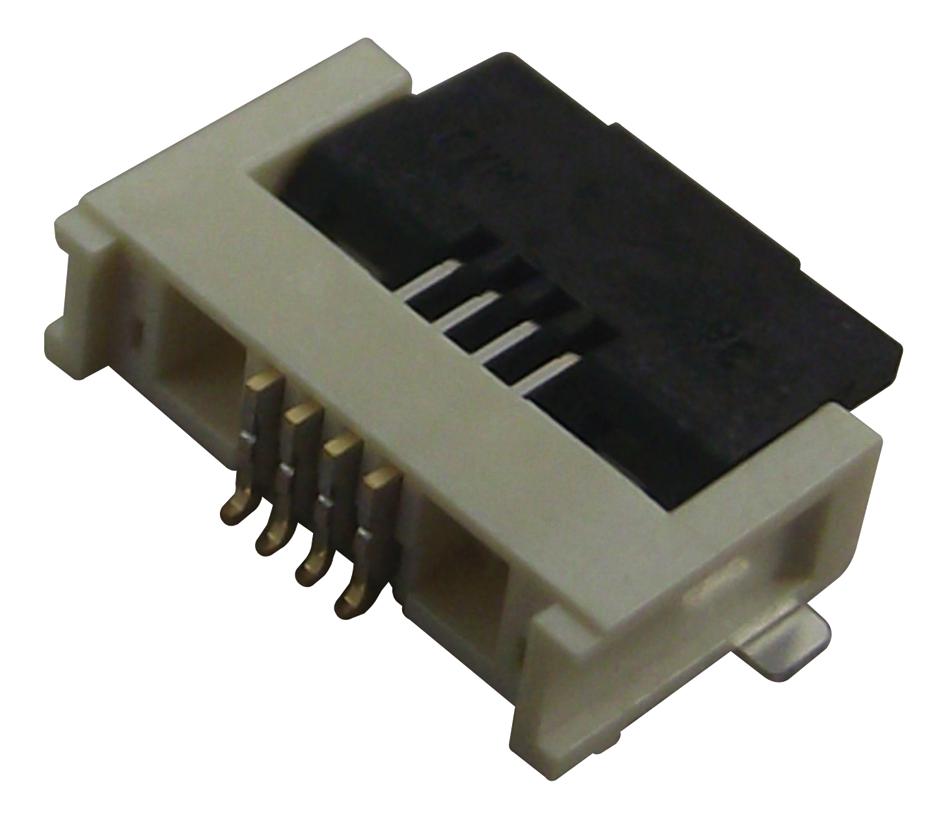

MOLEX 5051100492 FFC/FPC Connector
This 0.50mm pitch Easy-On™ FFC/FPC connector features a right-angle, surface-mount design with a double bottom contact type, ideal for compact electronic assemblies. It supports 4 circuits with high reliability, has a mated height of 1.90mm, and operates within a temperature range of -40°C to +105°C. Crafted from phosphor bronze with gold-plated contacts over nickel, it offers durability up to 25 mating cycles. Its liquid crystal polymer body ensures excellent thermal and electrical performance, making it suitable for various industrial and consumer electronics applications.
MOLEX 5051100492 FFC/FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits (Loaded): 4
- Maximum Circuits: 4
- Height: 1.90mm
- Contact Material: Phosphor Bronze
- Contact Plating (Mating and Termination): Gold over Nickel
- Resin Material: Liquid Crystal Polymer
- Temperature Range - Operating: -40°C to +105°C
- Durability (Mating Cycles Max): 25
- Entry Angle: 90°
- Color - Resin: Beige
- Orientation: Right Angle
- Surface Mount Technology
- Current - Max per Contact: 0.5A
- Voltage - Max: 50V AC/DC
- Packaging: Embossed Tape on Reel
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Low-Halogen: Yes
Buy the Molex 5051100492 – Reliable FFC/FPC Connector for Industrial Applications
Discover the high-quality Molex FFC/FPC connector Model 5051100492 designed for reliable electronic connections. Featuring a 0.50mm pitch, right-angle surface-mount design, and gold-plated contacts, it ensures durability and optimal electrical performance. Suitable for compact devices, it supports 4 circuits with a height of 1.90mm and operates between -40°C and +105°C. The connector's robust liquid crystal polymer body guarantees thermal stability and long-term reliability, making it ideal for industrial, automotive, consumer electronics, and communication equipment where space-saving and dependable performance are essential.
Order your Molex Series5051100492 FFC/FPC connector today and ensure reliable, compact connections for your industrial electronics projects.
Frequently Asked Questions
Where can I buy MOLEX 5051100492?
You can click on the BUY or RFQ button to purchase 5051100492 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5051100492?
You can download the 5051100492 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5051100492?
MOLEX
