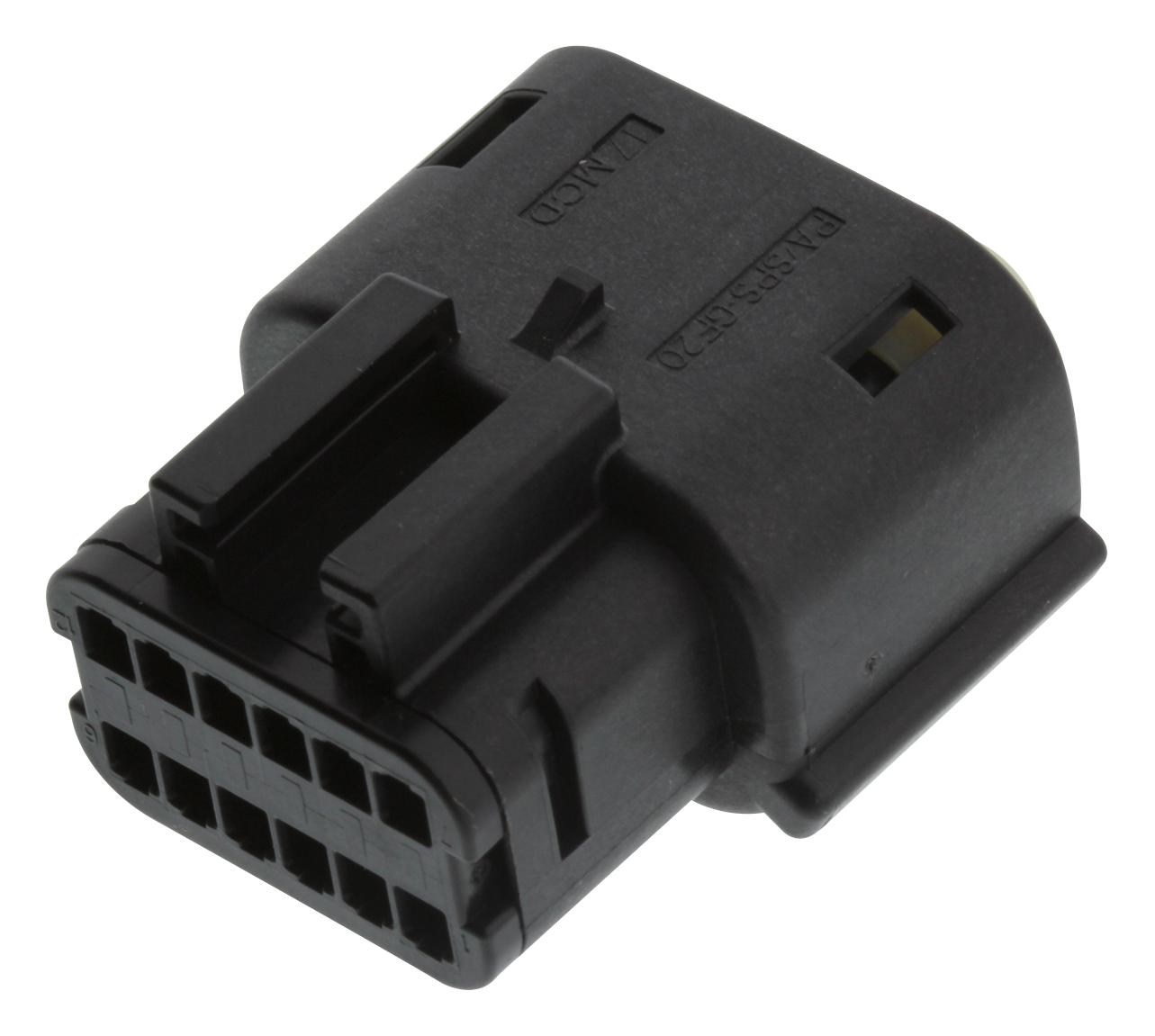

MOLEX 334721301 Sealed Female Connector
The MOLEX 33472-1301 is a robust sealed female connector within the MX150 connector system. Designed for demanding environments, it offers a dual-row layout accommodating 12 circuits. Polarization 'A' ensures correct mating, while the clip-slot provides added security. Constructed with modified polystyrene resin, this connector is ideal for power, wire-to-board, and wire-to-wire applications in automotive, industrial, and consumer electronics. Its operating temperature range of -40°C to +125°C ensures reliable performance across a wide range of conditions.
MOLEX 334721301 Sealed Female Connector Specifications:
- product_family: Crimp Housings
- series: 33472
- application: Power, Wire-to-Board, Wire-to-Wire
- polarization: A
- upc: 822348087198
- circuits_maximum: 12
- color: Black
- gender: Receptacle
- keying: Yes
- lock_to_mating_part: Yes
- material: Modified Polystyrene
- number_of_rows: 2
- pitch_mating_interface: 3.50mm
- stackable: No
- operating_temperature_range: -40°C to +125°C
- halogen_free_status: Low-Halogen
- mates_with: MX150 Male Sealed Connector 33482, MX150 Male Bulkhead Twist-Lock Sealed Connector 348406410
- use_with: MX150 Female Terminal 33012, 33001, MX150 Cavity Plug Sealed 343450001, MX150 Backshell 349511210, 349501220
