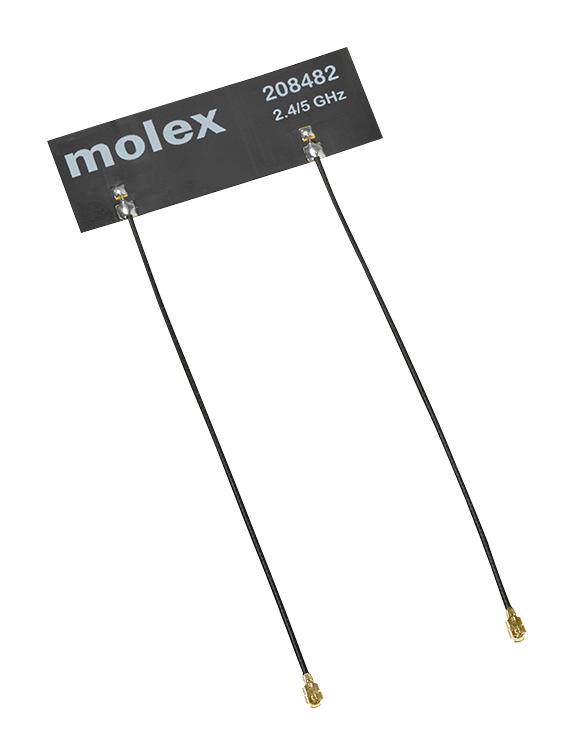

MOLEX 2084820100 Wireless Antenna
This 2.4/5GHz flexible antenna is designed for IoT applications, supporting Wi-Fi, Bluetooth, Zigbee, and Thread protocols. It features MIMO 2x2 technology, a length of 100mm, and operates within frequency ranges of 2400-2483.5 MHz and 5150-5850 MHz. Its omnidirectional radiation pattern ensures reliable signal coverage, with peak gains of 2.9 dBi at 2.4GHz and 5.0 dBi at 5GHz. Made with low-halogen materials, it is adhesive-mounted, polarized linearly, and offers high efficiency, making it ideal for compact wireless devices.
MOLEX 2084820100 Wireless Antenna Specifications:
- Frequency Range: 2400-2483.5 MHz (Band 1), 5150-5850 MHz (Band 2)
- Peak Gain: 2.9 dBi at 2.4GHz, 5.0 dBi at 5GHz (Port 1), 3.4 dBi at 2.4GHz, 5.9 dBi at 5GHz (Port 2)
- Return Loss: < -8 dB (Port 1), < -13 dB (Port 2)
- Efficiency: 65% at 2.4GHz, 75% at 5GHz (Port 1); 75% at 2.4GHz, 70% at 5GHz (Port 2)
- Cable Length: 100mm
- Dimensions: Length 55.20mm, Width 19.20mm, Thickness 0.16mm
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Materials: Low-halogen, RoHS compliant
- Mounting Style: Adhesive
- Electrical Connectivity: Cable
Buy the Molex 2084820100 – Reliable Wireless Antenna for IoT Applications
Enhance your IoT devices with this high-performance 2.4/5GHz flexible antenna offering omnidirectional coverage, high efficiency, and low-profile design. Perfect for Wi-Fi, Bluetooth, Zigbee, and Thread applications, this antenna features 100mm cable length and supports dual-band operation to ensure strong, reliable connections. Made from RoHS-compliant materials, it’s easy to mount with adhesive and suitable for compact wireless applications. Upgrade your wireless setup today with this versatile antenna for maximum performance and durability.
Buy Molex 2084820100 now and experience unmatched reliability and performance in IoT wireless connectivity solutions.
