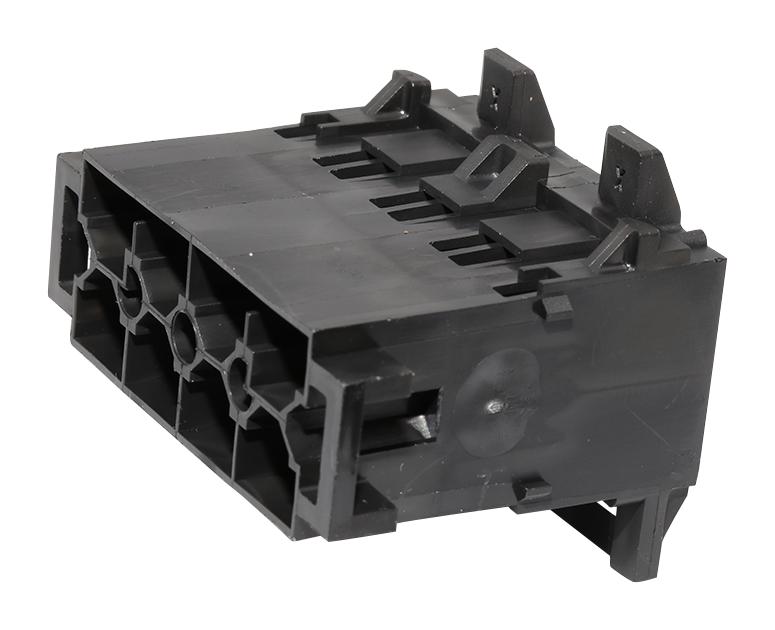

MOLEX 439382102 Power Connector
Mini-Fit Sr. Power Connectors offer a reliable power solution with a 10.00mm pitch, dual-row housing, and an 8-circuit configuration. Made from UL and CSA-certified flame-retardant polyester resin, these panel-mount connectors feature a black color, withstand operating temperatures from -40°C to +105°C, and handle a maximum current of 50A per contact. Designed for wire-to-wire connections, they are stackable, RoHS compliant, halogen-free, and suitable for various industrial applications requiring secure and durable power distribution.
MOLEX 439382102 Power Connector Specifications:
- Pitch - Mating Interface: 10.00mm
- Number of Rows: 2
- Circuits (maximum): 8
- Color - Resin: Black
- Flammability: 94V-0
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 50.0A
- Packaging Type: Bag
- Panel Mount: Yes
- Stackable: No
- Glow-Wire Capable: No
- Net Weight: 15.538 g
- Agency Certifications: UL, CSA
- RoHS: Compliant, Halogen-Free, Not Low-Halogen
- Lead-free Process Capability: Yes
Buy the Buy Molex Mini-Fit Sr. Power Connectors Part Number 439382102 Online
Experience dependable power distribution with the Molex Mini-Fit Sr. Power Connector, featuring an 8-circuit dual-row design, 10mm pitch, and high current capacity. Made from UL and CSA-certified flame-retardant polyester, this panel-mount connector withstands harsh environments from -40°C to +105°C and handles up to 50A per contact. Its stackable and RoHS-compliant construction makes it ideal for industrial, automation, and power supply applications, ensuring safe and durable connections for your projects.
Order your Molex Mini-Fit Sr. Power Connector 439382102 today and ensure reliable power connections with high current capacity and robust design.
Frequently Asked Questions
Where can I buy MOLEX 439382102?
You can click on the BUY or RFQ button to purchase 439382102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 439382102?
You can download the 439382102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 439382102?
MOLEX
