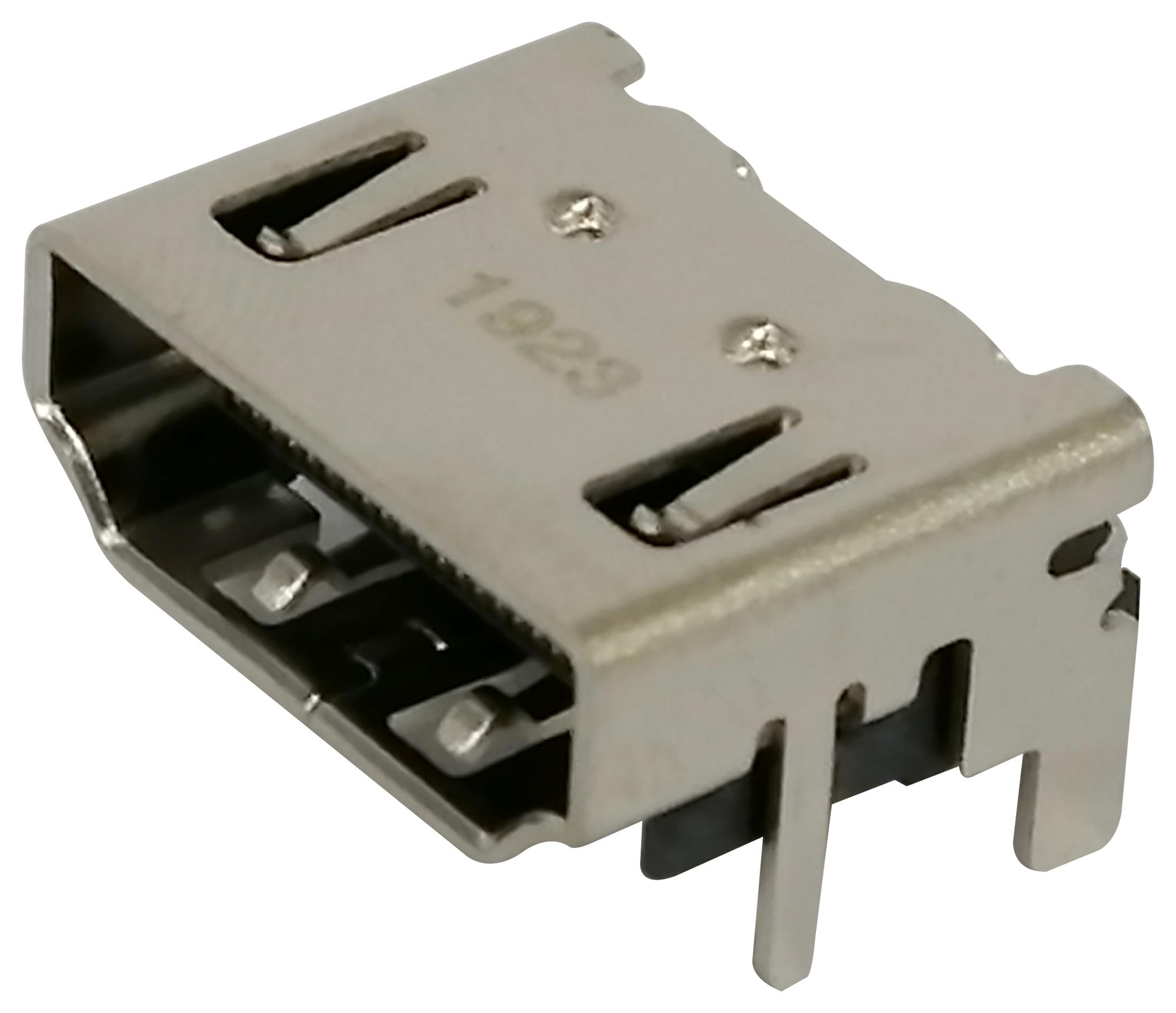

MOLEX 2086581001 HDMI Receptacle Connector
The MOLEX 208658-1001 is a high-definition multimedia interface (HDMI) receptacle connector designed for wire-to-board applications. Featuring a right-angle orientation and 0.50mm pitch, this connector provides a compact and reliable connection for HDMI v2.1 signals. The gold plating on both the mating and termination interfaces ensures excellent signal integrity and durability, while the polarized design enhances ease of use and prevents mis-mating. It is suitable for a wide range of consumer electronics and industrial applications requiring high-performance HDMI connectivity.
MOLEX 2086581001 HDMI Receptacle Connector Specifications:
- circuits_loaded: 19
- circuits_maximum: 19
- color_resin: Black
- durability_mating_cycles_max: 10000
- gender: Female
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Gold
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.775
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- panel_mount: Without Flange
- pitch_mating_interface: 0.50mm
- pitch_termination_interface: 0.50mm
- plating_min_mating: 0.762µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- ports: 1
- temperature_range_operating_c: -20° to +85°
- termination_interface_style: Surface Mount
- current_maximum_per_contact_a: 0.5
- voltage_maximum_dc_v: 40
- upc: 191130504671
