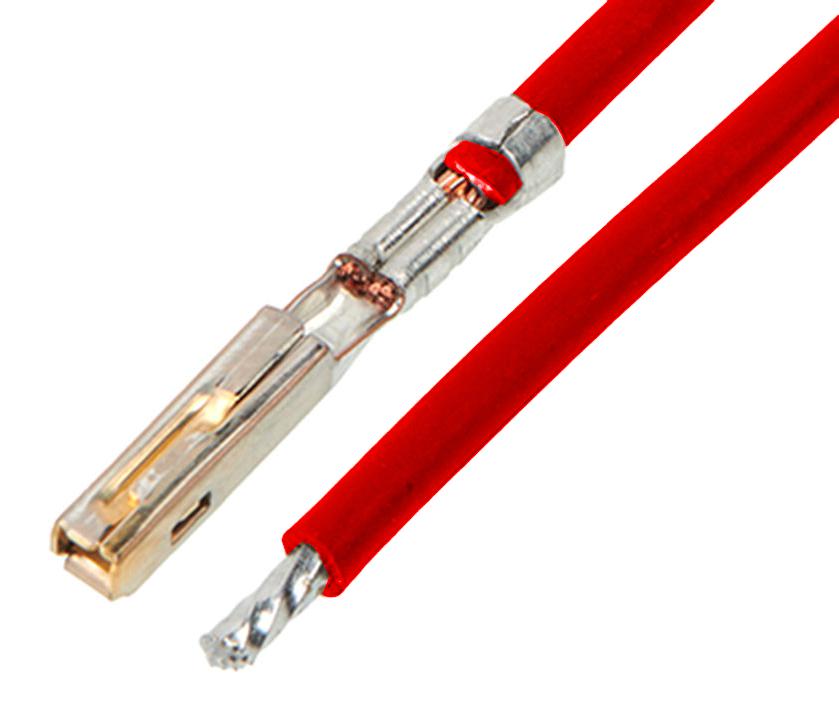

MOLEX 2163012222 MX150 Pre-Crimped Lead
The MOLEX 216301-2222 is an off-the-shelf pre-crimped lead assembly, specifically designed for MX150 connectors. This lead provides a convenient and reliable connection solution for power, wire-to-board, and wire-to-wire applications. It features gold plating on the contact for enhanced conductivity and corrosion resistance. The red resin color aids in identification and organization within complex wiring systems. This component is ideal for applications requiring a pre-terminated connection, reducing assembly time and ensuring consistent quality.
MOLEX 2163012222 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: MX150 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color: Red
- material_metal: High Performance Alloy (HPA)
- material_plating: Gold (Au)
- net_weight: 4.115/g
- packaging_type: Bag Single Ended
- termination_interface: Crimp or Compression
- wire_insulation_diameter: 2.70mm max.
- wire_size_awg: 14
- wire_cable_type: TXL
- current_max_per_contact: Contact Molex
- voltage_max: 14V DC
- upc: 195842071179
- elv_compliance: Not Relevant
- rohs_status: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Low-Halogen
- use_with_housing: MX150 Dual Row Housing 33472, MX150 Single Row Housing 33471, MX150 Hybrid Housing 33476
- sales_drawing: 2163011221-000
