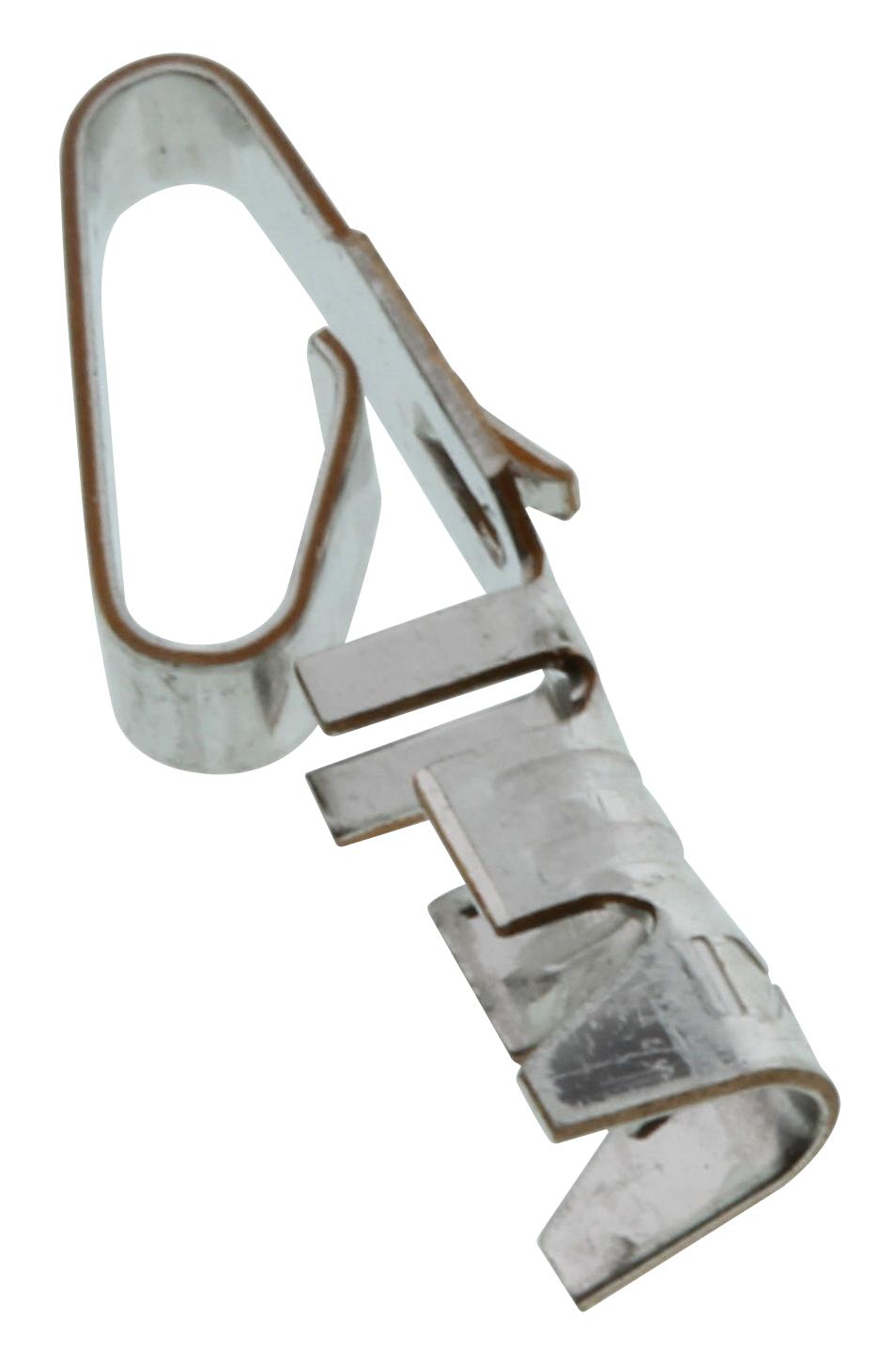

MOLEX 08520132 KK 396 Crimp Terminal
The MOLEX 08-52-0132 KK 396 Crimp Terminal is a crucial component in wire-to-board interconnect systems. Designed for power applications, this terminal accommodates wire gauges ranging from 18 to 22 AWG. Constructed from phosphor bronze with a tin (Sn) plating, it ensures a robust and corrosion-resistant connection. The terminal is RoHS compliant, reflecting MOLEX's commitment to environmental responsibility. It's a versatile solution for various industrial and commercial applications requiring secure and reliable wire terminations.
MOLEX 08520132 KK 396 Crimp Terminal Specifications:
- Series: 8818
- Application: Power, Wire-to-Board
- EU ELV: Not Relevant
- Overview: KK® Interconnect System
- Packaging: Bag
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin (Sn)
- Material - Plating Termination: Tin (Sn)
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 2.41mm max.
- Wire Size AWG: 18, 20, 22
- Wire Size mm²: N/A
- Lead-free Process Capability: N/A
- RoHS Phthalates: Not Contained
- REACH SVHC: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free Status: FreeFreeFree
- China RoHS: Green Image
- ELV: Not Relevant
- Net Weight: 0.186/g
Buy the 08-52-0132 MOLEX KK 396 Crimp Terminal | myMectronic
Purchase the MOLEX 08-52-0132 KK 396 Crimp Terminal securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 08520132?
You can click on the BUY or RFQ button to purchase 08520132 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 08520132?
You can download the 08520132 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 08520132?
MOLEX
