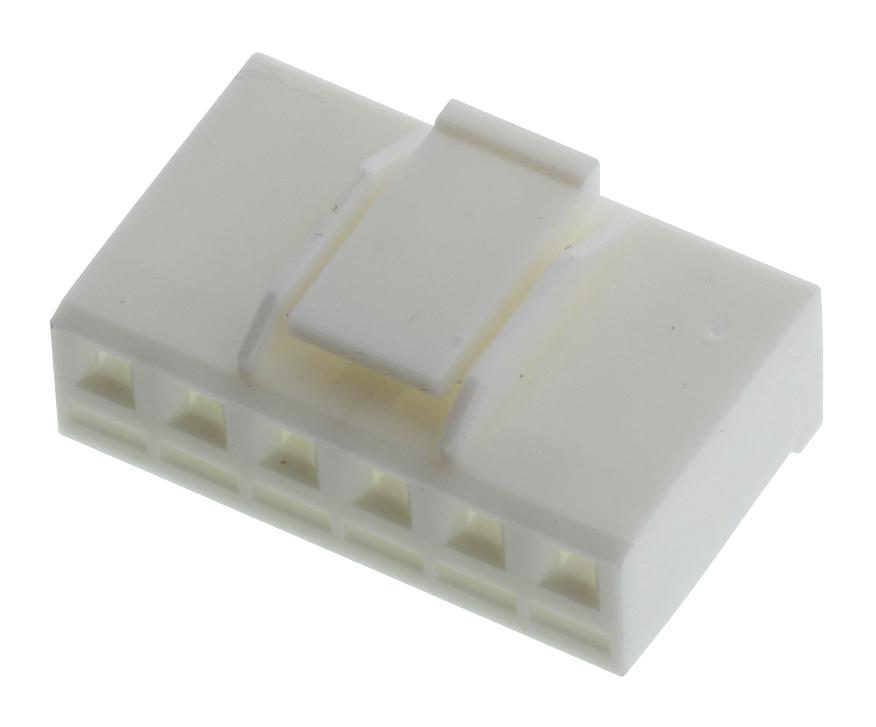

MOLEX 510670600 Mighty-SPOX Connector System
The MOLEX 51067-0600 Mighty-SPOX connector housing is a versatile solution for power and signal transmission in wire-to-wire and wire-to-board applications. Its robust design incorporates a positive lock feature, ensuring secure connections. The housing supports up to 6 circuits with a 3.50mm pitch and is manufactured from polyester resin. Compliant with RoHS standards and operating within a temperature range of -40°C to +105°C, this connector is suitable for a wide range of industrial and commercial applications. It is designed to mate with components like 51114, 53258, 53259, 53265, and 53266 and utilizes 50217 crimp terminals.
MOLEX 510670600 Mighty-SPOX Connector System Specifications:
- overview: Mighty-SPOX Connector System
- description: Mighty-SPOX Wire-to-Wire and Wire-to-Board Housing
- pitch_mating_interface: 3.50mm
- circuits_maximum: 6
- color_resin: Natural
- flammability: 94V-0
- gender: Receptacle
- glow_wire_capable: No
- material_resin: Polyester
- net_weight: 1247.100/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- stackable: No
- temperature_range_operating: -40°C to +105°C
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- application: Power, Wire-to-Board, Wire-to-Wire
- product_family: Crimp Housings
- upc: 800753630611
