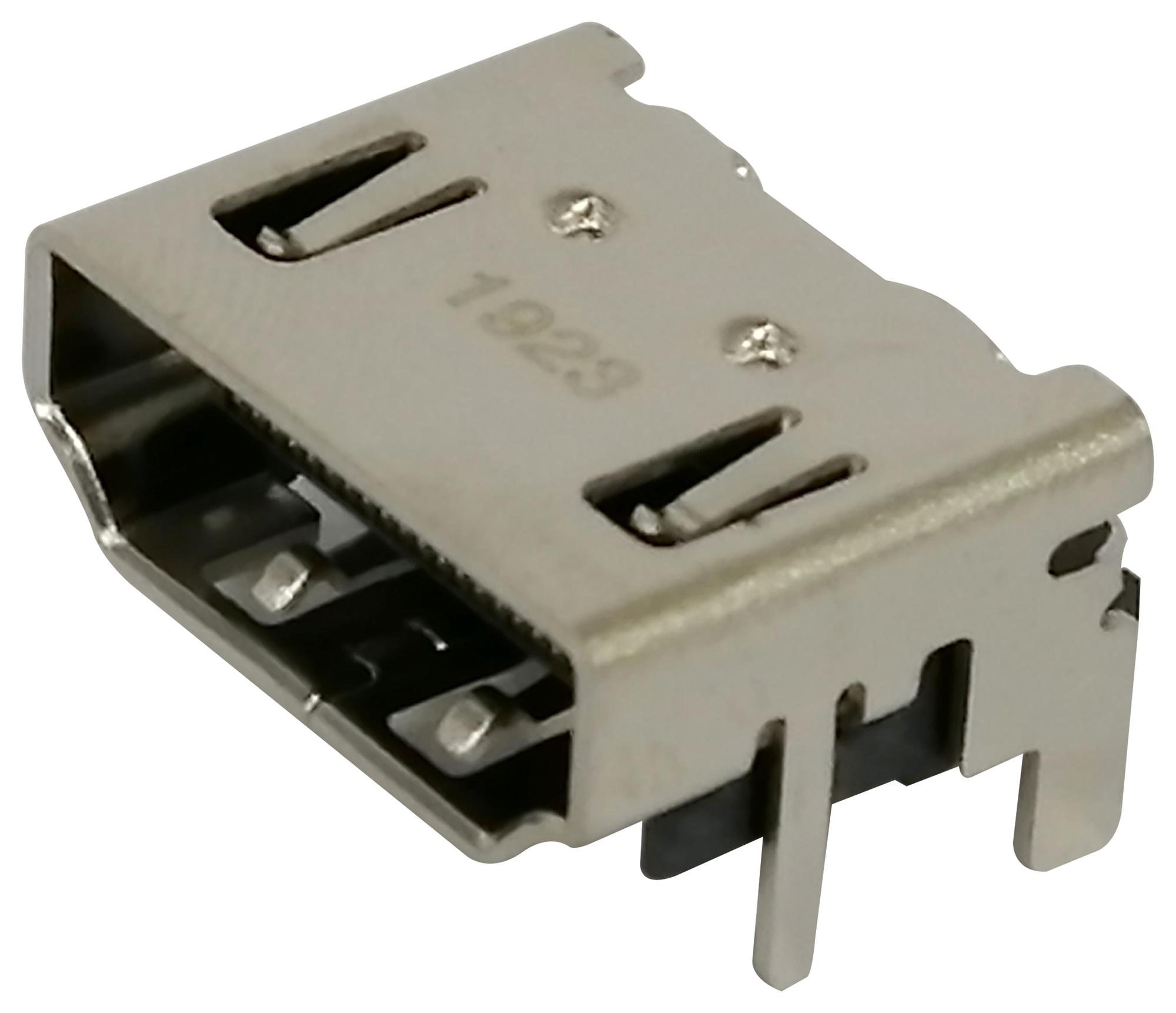

MOLEX 2086581101 HDMI Receptacle Connector
The MOLEX 208658-1101 is a high-definition multimedia interface (HDMI) receptacle connector designed for wire-to-board applications. Featuring a right-angle orientation and 0.50mm pitch, this connector offers a compact and reliable solution for transmitting high-resolution audio and video signals. The gold plating on both the mating and termination interfaces ensures excellent conductivity and durability. It is RoHS compliant and suitable for a wide range of consumer electronics and industrial equipment.
MOLEX 2086581101 HDMI Receptacle Connector Specifications:
- circuits_loaded: 19
- circuits_maximum: 19
- color_resin: Black
- durability_mating_cycles: 10000
- gender: Female
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Gold
- material_resin: Liquid Crystal Polymer
- net_weight_g: 2.420
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- panel_mount: Without Flange
- pitch_mating_interface: 0.50mm
- pitch_termination_interface: 0.50mm
- plating_min_mating: 0.762µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- ports: 1
- temperature_range_operating_c: -20° to +85°
- termination_interface_style: Surface Mount
- current_maximum_per_contact_a: 0.5
- voltage_maximum_dc_v: 40
- upc: 191130504923
