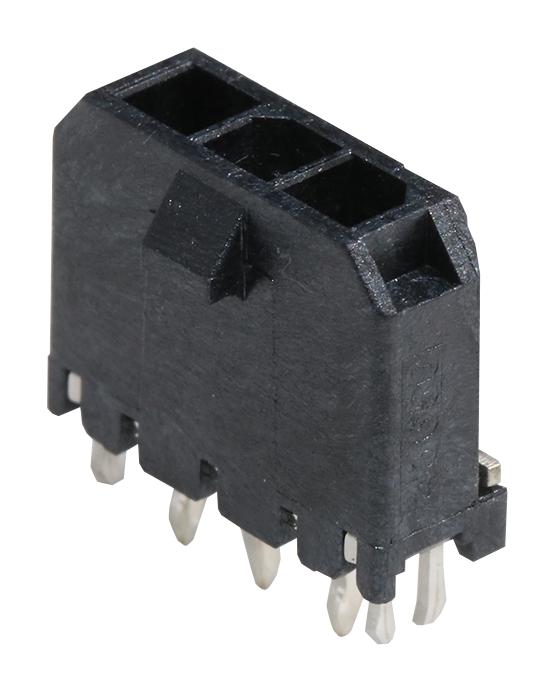

MOLEX 436500318 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0318 is a Micro-Fit 3.0 vertical header, part of the 43650 series, designed for robust power and wire-to-board connections. This header features a 3.00mm pitch, a single-row configuration with 3 circuits, and a tin plating for enhanced conductivity and corrosion resistance. It is engineered with a PCB press-fit metal retention clip for secure mounting and is glow-wire capable, meeting stringent safety standards. The header is suitable for applications requiring high-temperature performance and reliable electrical connections, commonly found in household appliances and industrial equipment. It is RoHS compliant and designed for easy integration into PCB designs.
MOLEX 436500318 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Series: 43650
- Application: Power, Wire-to-Board
- Circuits (Loaded): 3
- Circuits (maximum): 3
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Resin: High Temperature Thermoplastic
- Plating - Mating: Tin
- Plating - Termination: Tin
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Polarized to PCB: Yes
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Material - Metal: Brass
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Surface Mount Compatible (SMC): Yes
