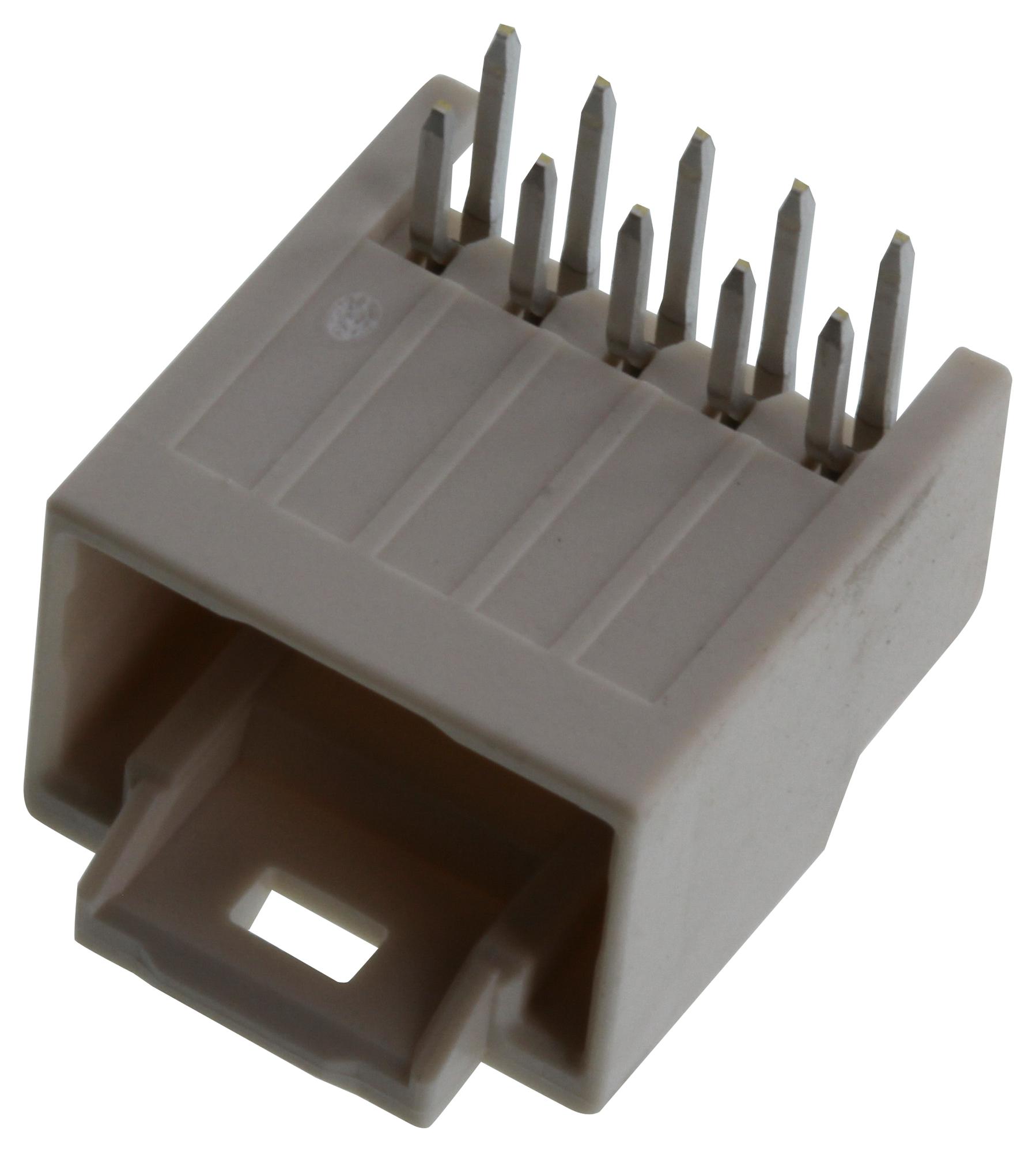

MOLEX 2086591040 iGrid Wire-to-Board Header
The MOLEX 208659-1040 iGrid Wire-to-Board Header is a dual-row, right-angle connector designed for reliable wire-to-board connections in various industrial applications. With a 2.00mm pitch and 10 circuits, this header offers a compact and efficient solution for connecting wires to PCBs. The positive lock feature ensures secure mating, while the gold plating provides excellent conductivity and durability. It is ideal for applications requiring robust and space-saving connectivity solutions.
MOLEX 2086591040 iGrid Wire-to-Board Header Specifications:
- pitch_mating_interface: 2.00mm
- plating_min_mating: 0.102µm
- current_maximum_per_contact: 2.0A
- voltage_maximum: 250V AC (RMS)/DC
- material_metal: Brass
- material_plating_mating: Gold
- material_resin: Polyamide
- pc_tail_length: 3.20mm
- number_of_rows: 2
- pcb_thickness_recommended: 1.20mm, 1.60mm
- temperature_range_operating: -40° to +105°C
- circuit_count_loaded: 10
- circuit_count_maximum: 10
- durability_mating_cycles_max: 30
- flammability: 94V-0
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- pcb_locator: Yes
- pcb_retention: None
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- stackable: No
- surface_mount_compatible: No
- net_weight: 965.000/mg
