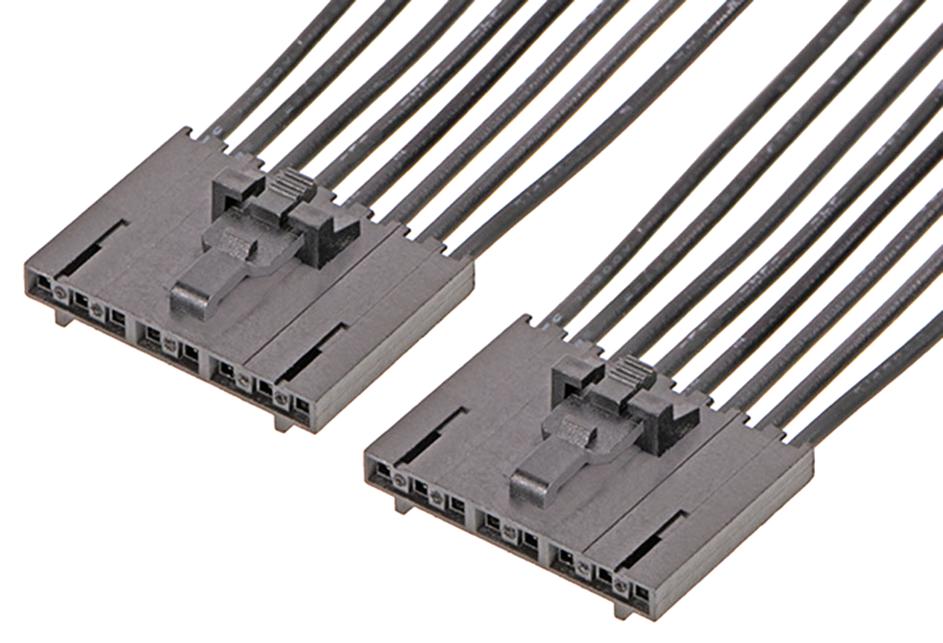

MOLEX 2162701082 Stackable Cable Assembly
This off-the-shelf stackable linear positive lock cable assembly supports various applications like prototyping and production. Featuring crimp, FFC, and IDT terminations, it incorporates two independent contacts for improved electrical performance. The connector position assurance lock provides secure connections even in high-vibration environments. Suitable for electronics, industrial, automotive, medical, and telecom sectors, it offers female-to-female SL cables with flexible wire options, split-peg PCB headers for stability, and a low-profile, stackable design. Meets UL and CSA standards, operating from -40°C to +105°C with up to 25 mating cycles.
MOLEX 2162701082 Stackable Cable Assembly Specifications:
- Series: 216270
- Application: Discrete wire, wire-to-wire, wire-to-board
- Connector Type: SL Female-to-SL Female
- Cable Length: 150.00 mm
- Number of Circuits: 8
- Color - Resin: Black
- Gender: Female-Female
- Locking Mechanism: Connector position assurance (CPA) lock
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester alloy
- Wire Insulation Diameter: 1.63 mm
- Wire Size AWG: 22
- Electrical: Max Voltage: 600V AC/DC, Max Current: 3A
- Operating Temperature Range: -40°C to +105°C
- Number of Mating Cycles: Up to 25
- Standards: UL (E29179), CSA (LR19980)
- Certifications: RoHS Compliant, Halogen-Free, UL Listed, CSA Certified
Buy the Molex 2162701082 – Reliable Discrete Cable Assembly for Industrial Applications
Purchase the Molex 2162701082 stackable cable assembly online today to ensure secure, reliable wire-to-wire and wire-to-board connections. Designed for industrial, automotive, and telecommunications sectors, this assembly features crimp, FFC, and IDT terminations, with two independent contacts for redundancy. Its connector position assurance lock guarantees secure contact under vibration. Constructed with durable materials and compliant with UL and CSA standards, it operates from -40°C to +105°C. Availability for quick ordering makes it ideal for prototyping and production needs.
Buy Molex 2162701082 now and experience unmatched reliability with secure, high-vibration resistant connections suitable for industrial and electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 2162701082?
You can click on the BUY or RFQ button to purchase 2162701082 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701082?
You can download the 2162701082 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701082?
MOLEX
