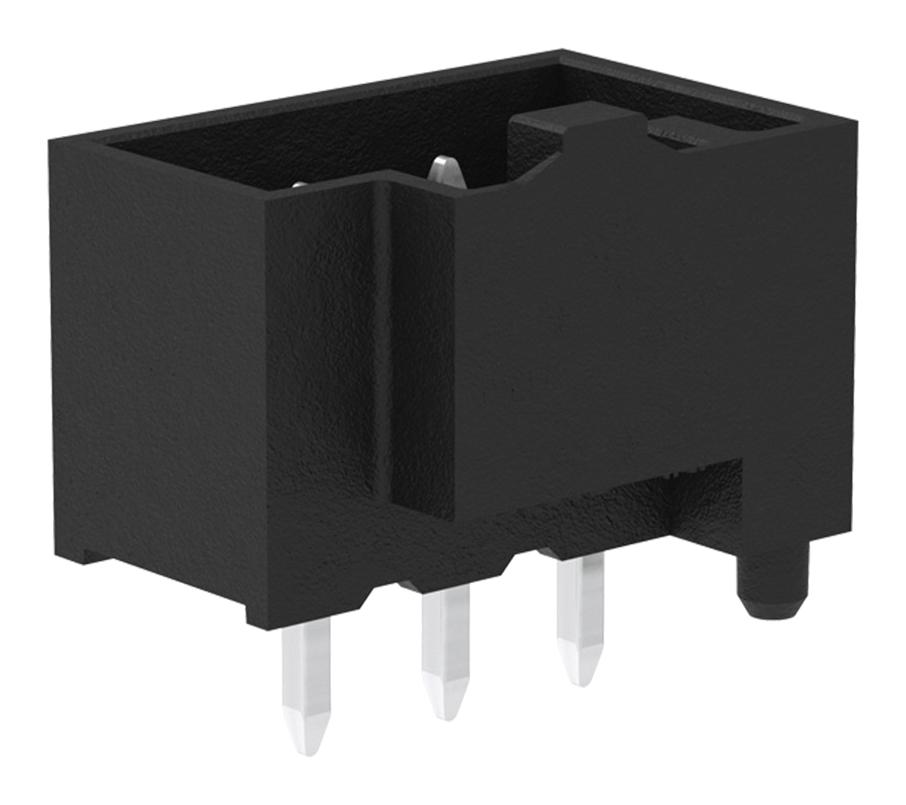

MOLEX 2092080003 WIRE-TO-BOARD CONNECTOR
The L1NK connector system is a reliable wire-to-board solution with a 3mm pitch, supporting up to 11.0A current and operating at a maximum voltage of 250V. It features a partially shrouded wall for pin protection, a crush peg for enhanced stability on the PCB, and a contact resistance of 10 milliohms. Designed for durability, it withstands at least 25 mating cycles, making it suitable for diverse applications including consumer electronics, telecommunications, medical devices, automotive, and industrial equipment. Its compact design ensures secure connections in tight spaces, providing safety and performance in various electronic systems.
MOLEX 2092080003 WIRE-TO-BOARD CONNECTOR Specifications:
- Current - Maximum per Contact: 11.0A
- Voltage - Maximum: 250V AC/DC
- Pitch - Mating Interface: 3.00mm
- Pitch - Termination Interface: 3.00mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Surface Material - Resin: Liquid Crystal Polymer
- Operating Temperature Range: -40°C to +105°C
- Number of Circuits: 3
- Color - Resin: Black
- Shrouded: Yes
- Stackable: No
- PCB Thickness - Recommended: Not specified but compatible with standard PCBs
- Through Hole: Yes
- Lock to Mating Part: Yes
- Max mating cycles: 25
- Net Weight: 0.471 grams
- Orientation: Vertical
- PCB Locator: None
- PCB Retention: Yes
- Termination Style: Through Hole
Buy the Molex Series LINK Connectors: 3 Circuits, 11A, 250V - 2092080003
Purchase the Molex 2092080003 wire-to-board connector online today to ensure safe, reliable connections for your electronics. Its 3mm pitch supports 11A current at 250V, making it ideal for consumer, telecom, medical, automotive, and industrial uses. Featuring a shrouded design for pin protection and a crush peg for stability, it withstands at least 25 mating cycles. Compact and durable, this connector guarantees consistent performance in tight spaces and demanding environments, delivering excellence for your electronic assemblies.
Buy Molex 2092080003 now and experience unmatched reliability and performance with a durable, high-current wire-to-board connector ideal for your electronic projects.
