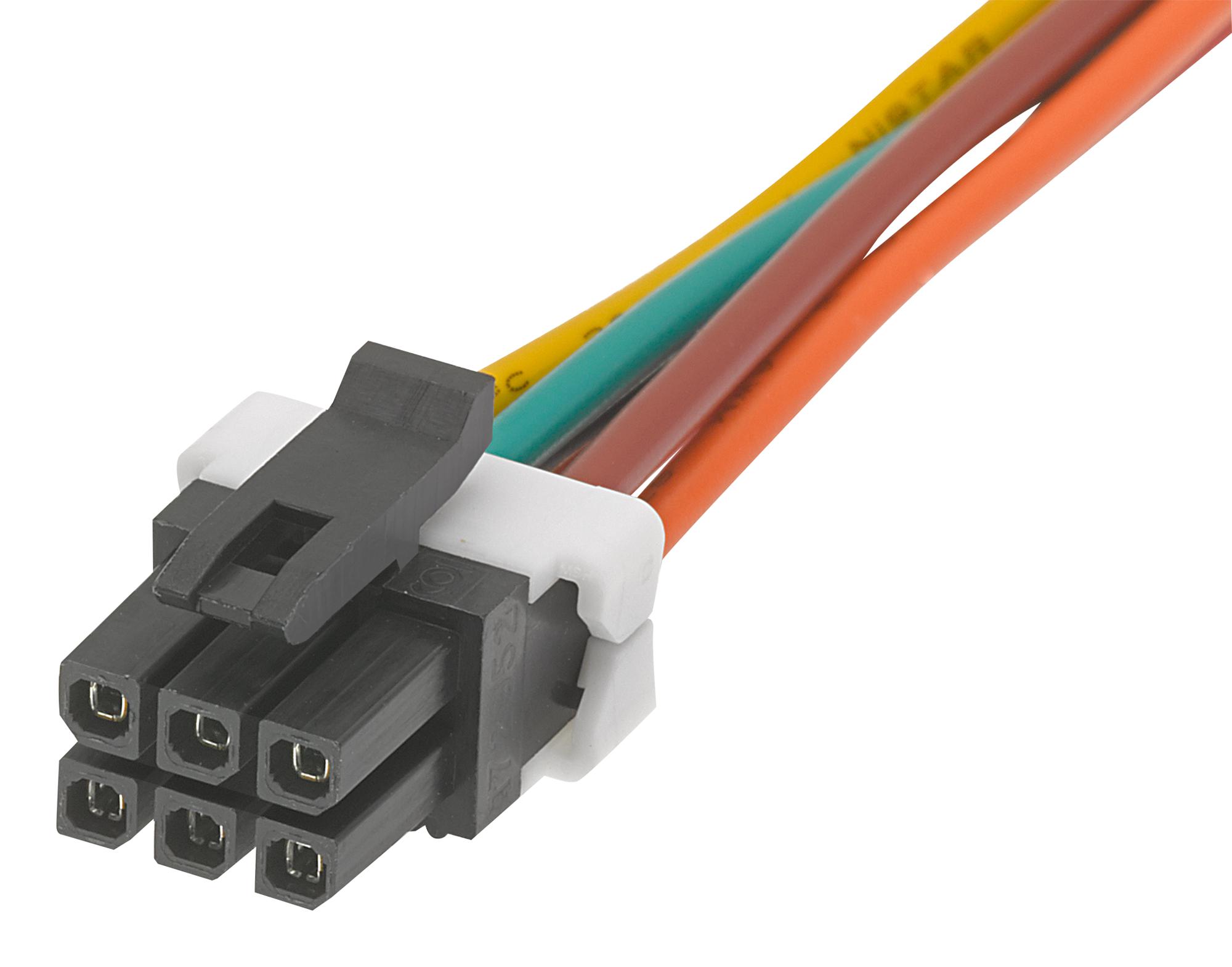

MOLEX 451320603 Power Connector
The Micro-Fit 3.0™ Cable Assembly is a dual-ended power connector featuring a 300mm length and six circuits, designed for reliable power distribution in electronic applications. It is a female-to-female connector with a 3.00mm pitch, constructed with phosphor bronze contacts that are tin-plated for durability. This assembly supports a maximum current of 5.0A and a voltage of 300V, making it suitable for power applications requiring secure, crimp or compression termination. Compliant with RoHS and China RoHS standards, it offers quality and environmental safety for various electronic assemblies.
MOLEX 451320603 Power Connector Specifications:
- Series: 45132
- Product Family: Cable Assemblies
- Application: Power
- Assembly Configuration: Connector to Connector
- Material - Metal: Phosphor Bronze
- Material - Plating Mating & Termination: Tin
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Pitch - Mating Interface: 3.00mm
- Wire Insulation Diameter: 1.76mm
- Wire Size AWG: 20
- Cable Length: 300.00mm
- Circuits (Loaded): 6
- Current - Maximum per Contact: 5.0A
- Voltage - Maximum: 300V
- Net Weight: 16.468g
- Packaging Type: Bag
- Plating Min - Mating & Termination: Tin
- Reference - Drawing Numbers: 2012341032-000
- Environmental Compliance: RoHS, China RoHS, Halogen-Free (Not Low-Halogen), REACH SVHC not contained
- Status: Active
Buy the Buy Molex Micro-Fit 3.0™ Part Number 451320603 Online
Purchase the Molex Micro-Fit 3.0™ Power Connector Assembly online today for efficient, high-quality power distribution in your electronic applications. This dual-ended, 6-circuit connector features a 300mm length, female-to-female configuration, and supports 5A/300V ratings, ensuring dependable power transfer. Crafted from durable phosphor bronze with tin plating, it is RoHS compliant and environmentally safe. Perfect for power supply connections where secure crimp or compression termination is required, offering professional quality for industry-grade projects.
Order your Molex Series45132 Micro-Fit 3.0™ Part 451320603 today and secure reliable power connections for your electronic projects.
