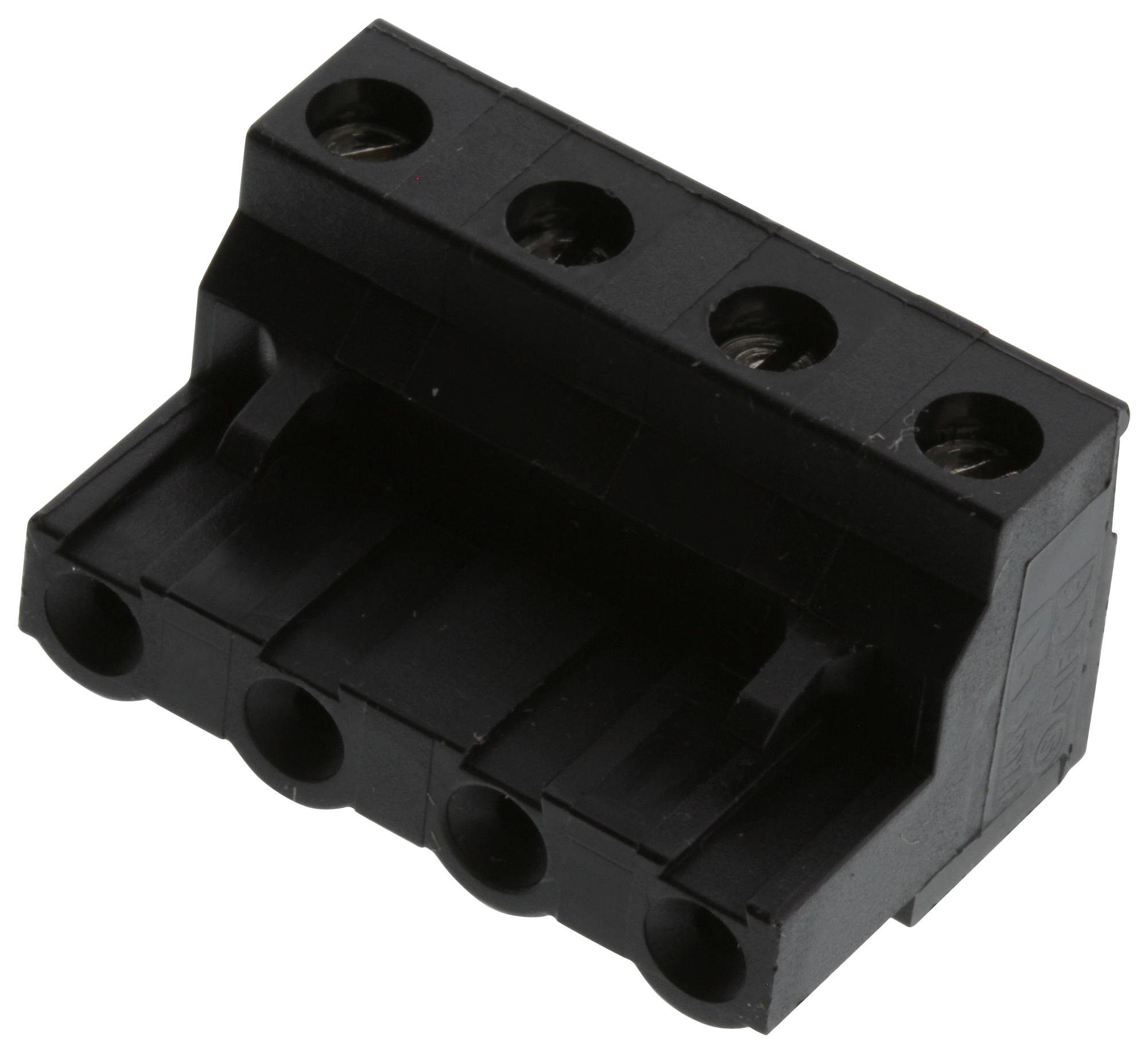

MOLEX 393710004 Eurostyle Terminal Block
This Eurostyle Pluggable PCB Terminal Block features a 7.50mm pitch, 180° wire entry, and 4 circuits, designed for reliable PCB connections in industrial applications. Made with UL-approved materials, it supports wire sizes from 0.05 to 2.50 mm² (12-30 AWG) and operates within a temperature range up to 110°C. Its right-angle orientation, stackability, and secure panel mounting ensure versatile installation options. The terminal block meets RoHS and UL safety standards, providing a durable, high-current connection for electrical and automation systems.
MOLEX 393710004 Eurostyle Terminal Block Specifications:
- Pitch - Mating Interface: 7.50mm
- Circuits (Loaded): 4
- Entry Angle: 180° Wire Entry
- Flammability: UL 94V-0
- Orientation: Right Angle
- PCB Retention: Yes
- Panel Mount: Yes
- Temperature Range - Operating: Up to 110°C
- Wire Size: 12-30 AWG (0.05-2.50 mm²)
- Current - Maximum per Contact: 15.0A
- Voltage - Maximum: 300V
- Material: UL-listed, Halogen-Free, RoHS compliant materials
- Lock to Mating Part: None
- Stackable: Yes
Buy the Molex 0393710004 – Reliable Eurostyle Terminal Blocks for Industrial Applications
Enhance your electrical assemblies with the Molex Eurostyle Terminal Block, featuring a 7.50mm pitch, 4 circuits, and UL approval. Its 180° wire entry allows easy and secure connections, supporting wire sizes from 0.05 to 2.50 mm² (12-30 AWG). Designed for durability up to 110°C, this right-angle terminal block is stackable, offers panel mounting options, and complies with RoHS and UL safety standards. Ideal for automation, control panels, and industrial wiring projects, it ensures reliable performance and simplified installation.
Order your Molex Series0393710004 Eurostyle Pluggable PCB Terminal Block today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MOLEX 393710004?
You can click on the BUY or RFQ button to purchase 393710004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 393710004?
You can download the 393710004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 393710004?
MOLEX
