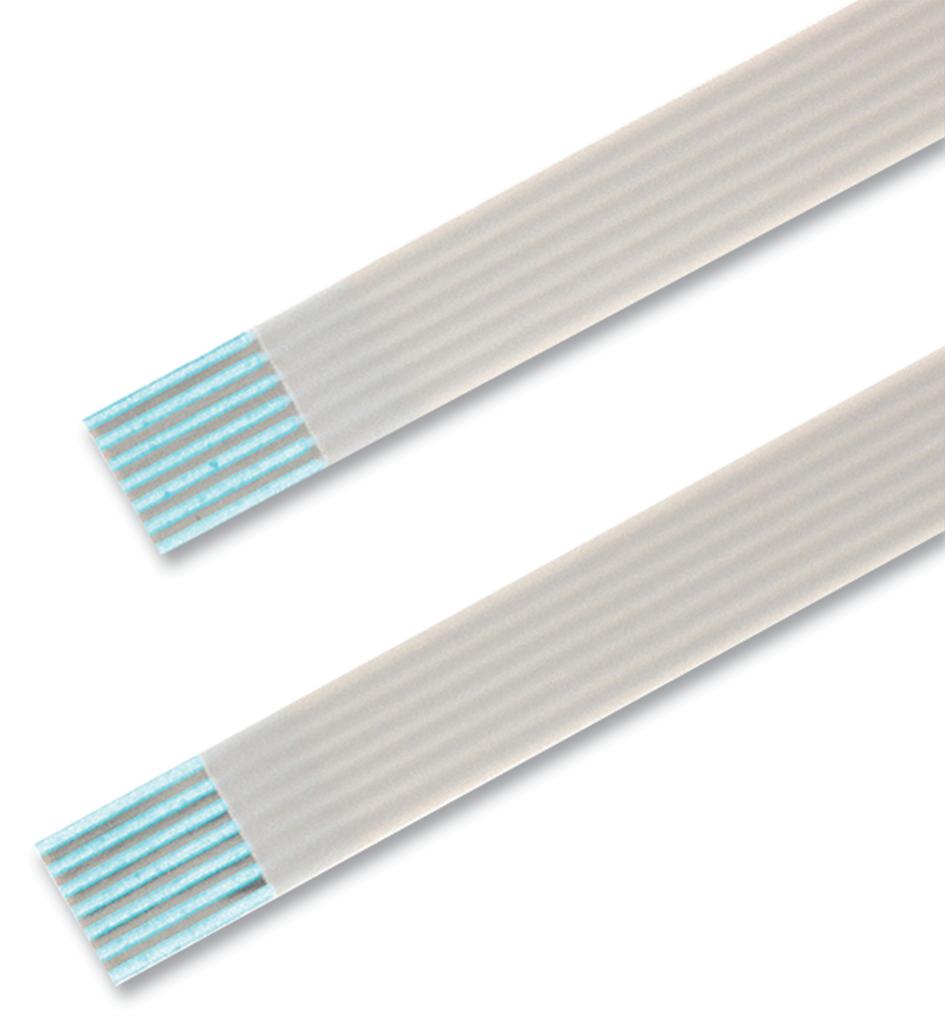

MOLEX 210200057 FFC Jumper
The Premo-Flex™ FFC jumper with a 0.50mm pitch features six circuits, a 0.102m cable length, and 0.27mm cable thickness. It employs tin-plated contacts on the same side (Type A) and uses flexible polyimide material for reliable and durable electrical connections. Suitable for flat flex cable applications, this high-quality jumper operates within a temperature range of -40°C to +80°C, providing maximum current of 0.5A and voltage of 30V. It is RoHS compliant and ideal for compact, high-performance electronic assemblies.
MOLEX 210200057 FFC Jumper Specifications:
- Pitch - Termination Interface: 0.50mm
- Circuits (Loaded): 6
- Cable Length: 0.102m
- Cable Thickness: 0.27mm
- Contact Material: Tin-plated
- Material: Polyimide
- Wire Size AWG: N/A (Flat Flex Cable)
- Maximum Current: 0.5A
- Maximum Voltage: 30V
- Operating Temperature Range: -40°C to +80°C
- Process Temperature Max: 250°C for 1 second
- RoHS and REACH Compliant
Buy the Buy Molex Premo-Flex FFC Jumper Part Number 21020-0057 Online
Purchase the Molex Premo-Flex FFC Jumper with 0.50mm pitch, 6 circuits, and 0.102m cable length directly online. This high-quality flat flex cable jumper features tin-plated contacts, flexible polyimide construction, and operates safely within -40°C to +80°C. It’s ideal for tightly packed electronic devices requiring reliable electrical connections and durability. With RoHS compliance, this jumper offers excellent performance for industrial, consumer, and automotive electronics. Order now for quick delivery and seamless integration into your project.
Buy Molex 21020-0057 now and experience unmatched flexibility and reliable performance in compact electronic assemblies.
