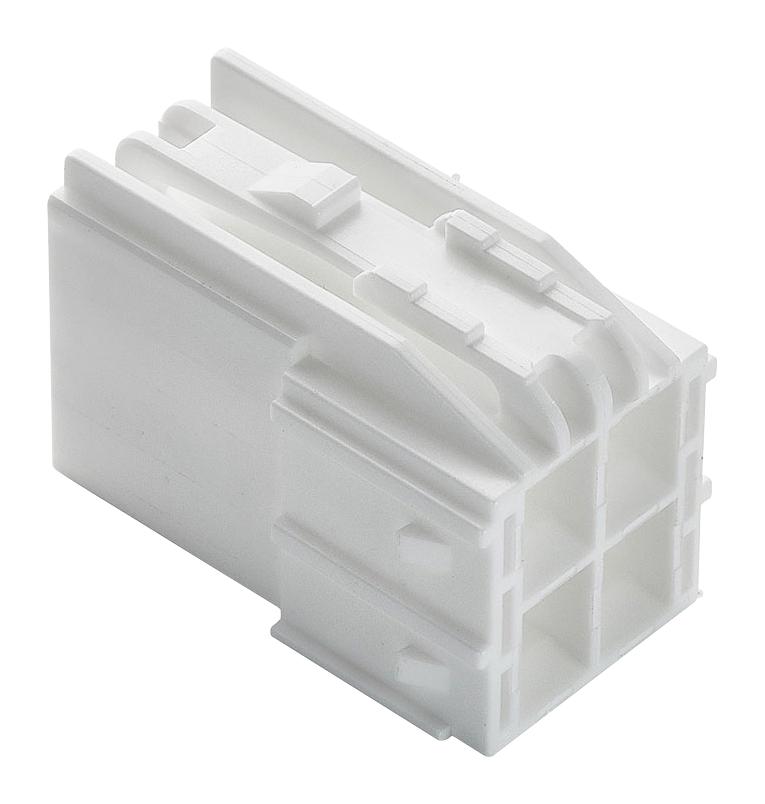

MOLEX 2069972411 Wire-to-Wire Connector
The CP-4.5 series wire-to-wire connectors are glow-wire capable and halogen-free, designed for reliable, safe electrical connections across consumer, industrial, and power applications. Featuring robust locking mechanisms, fool-proof keyed and polarized mating, and available in multiple colors for easy identification. Integral beam supports prevent wire snagging, while polarization keys prevent mis-mating and shorts. The positive inertia lock ensures secure connections with an audible click, latch protection, and terminal retention. Made from UL94V-0 nylon, supporting up to 600V, 10A, and withstanding 30 mating cycles, operating from -40°C to +120°C.
MOLEX 2069972411 Wire-to-Wire Connector Specifications:
- Material - Resin: Nylon
- Color - Resin: Natural (White)
- Number of Circuits: 4
- Gender: Plug
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Glow-Wire Capable: Yes
- Voltage Rating: 600V AC/DC
- Current Rating: 2.0 to 10.0A
- Temperature Range - Operating: -40°C to +120°C
- Locking Mechanism: Positive inertia lock
- Mating Cycles: Up to 30
- Dimensions: 450mm length, panel mount not supported
- RoHS Compliant: Yes
- Halogen-Free: Yes
- UL94V-0 rating: Yes
Buy the Molex Series CP-4.5 Wire-to-Wire Connectors: 2069972411
Purchase the Molex CP-4.5 wire-to-wire connector online today to enjoy a reliable and safe connection solution. These connectors are glow-wire capable, halogen-free, and robust. Designed for versatile electrical applications, they feature fool-proof keyed and polarized mating, integral beam supports to prevent wire snagging, and a positive inertia lock for secure connections with an audible click. Made from UL94V-0 nylon, supporting up to 600V, 10A, and capable of numerous mating cycles, they operate from -40°C to +120°C, ensuring safety and durability for your projects.
Order your Molex Series CP-4.5 wire-to-wire connector today and ensure reliable, safe, and compliant electrical connections in your next project.
Frequently Asked Questions
Where can I buy MOLEX 2069972411?
You can click on the BUY or RFQ button to purchase 2069972411 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2069972411?
You can download the 2069972411 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2069972411?
MOLEX
