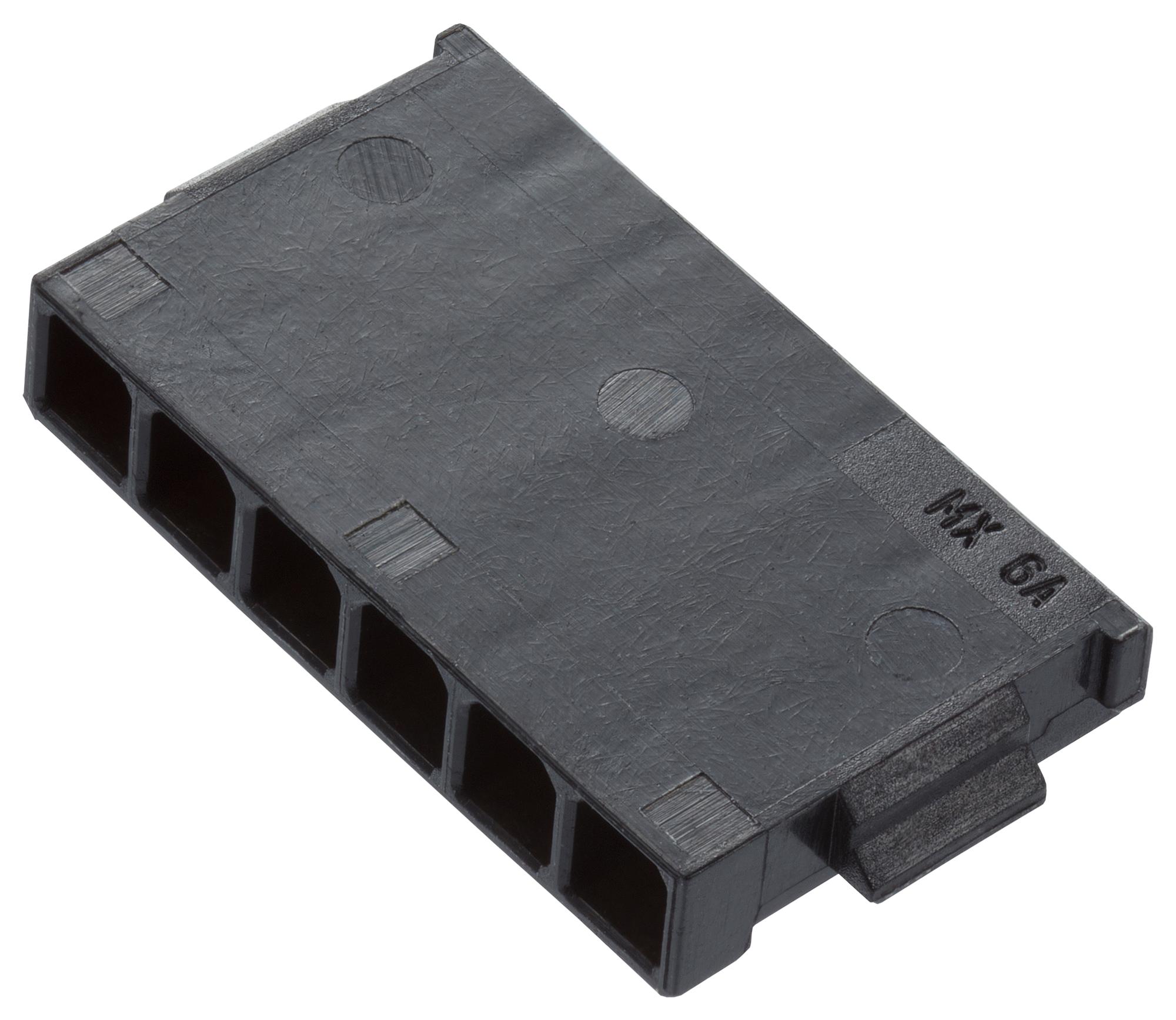

MOLEX 2121320006 Pico-EZmate Receptacle Housing
The MOLEX 212132-0006 Pico-EZmate Plus Receptacle Housing is a critical component in wire-to-board connector systems. Designed with a 1.00mm pitch and accommodating 6 circuits, this housing provides a secure and reliable connection for signal transmission. Its black polyamide resin construction offers durability and resistance to common industrial conditions. The polarized design and locking mechanism ensure proper mating and prevent accidental disconnections, making it ideal for applications in consumer electronics, automotive systems, and industrial equipment. It is RoHS compliant and contributes to environmentally responsible designs.
MOLEX 2121320006 Pico-EZmate Receptacle Housing Specifications:
- product_family: Crimp Housings
- series: 212132
- application: Signal, Wire-to-Board
- circuits_maximum: 6
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight: 16.600/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 1.00mm
- polarized_to_mating_part: Yes
- temperature_range_operating: -40° to +105°C
- upc: 193264124664
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained Per D(2020)4578-DC
- reach_svhc: Not Contained
- halogen_free: Low-Halogen
- mates_with: Pico-EZmate Plus PCB Header 212134
