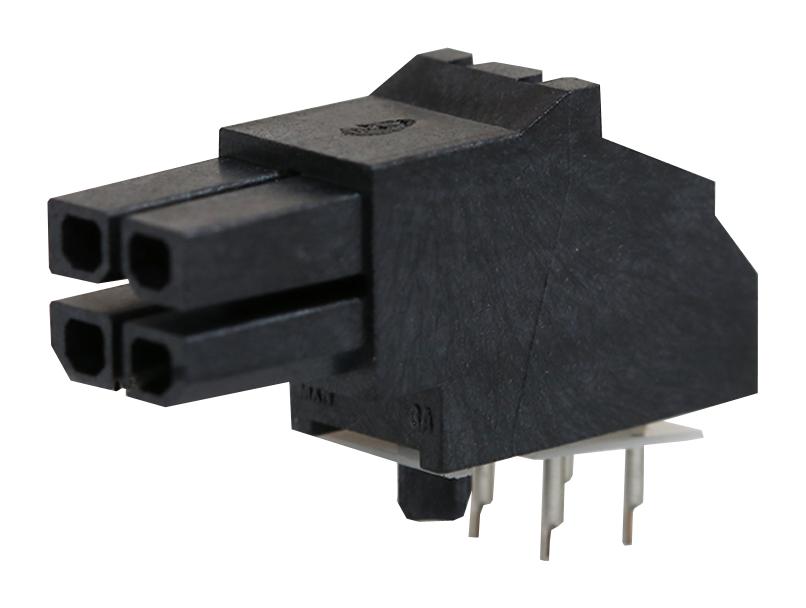

MOLEX 447640401 Micro-Fit BMI Receptacle Header
The MOLEX 44764-0401 is a Micro-Fit BMI receptacle header within the 44764 series. This component is designed for right-angle PCB mounting and is ideal for applications requiring secure wire-to-board or power connections. It features a dual-row configuration with 4 circuits, ensuring efficient signal and power transmission. The header's tin plating provides excellent solderability and corrosion resistance, while its robust construction guarantees long-term reliability in demanding industrial environments. It is compatible with various Micro-Fit BMI headers and housings, simplifying system design and assembly.
MOLEX 447640401 Micro-Fit BMI Receptacle Header Specifications:
- circuits_loaded: 4 Circuits
- circuits_maximum: 4
- durability_mating_cycles_max: 30
- flammability: 94V-0
- glow_wire_capable: No
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight_g: 1.305
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 3.00
- plating_min_mating_um: 1.016
- plating_min_termination_um: 1.016
- polarized_to_pcb: Yes
- surface_mount_compatible_smc: No
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 8.5
- voltage_maximum_v: 600
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability_wave: WAVE
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_c: 260
