MOLEX 2125201002 Datasheet & Stock

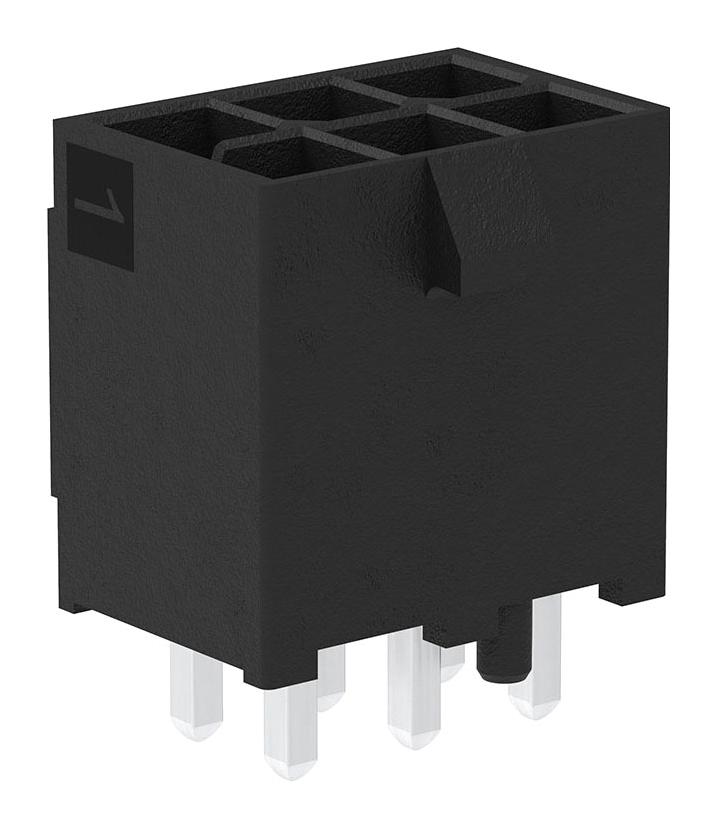

The 212520 series dual-row Mini-Fit Max vertical header is a high-performance wire-to-board connector capable of delivering up to 20.5A of current in a compact form factor. It features a robust tangless terminal design with a TPA-capable receptacle, supporting extensive stacking for efficient use of space and power. The connector mates with Mini-Fit Max crimp housing 212514 and has a maximum voltage rating of 600V. It offers a minimum durability of 20 cycles, uses UL 94V-0/glow wire rated housing, and features tin-plated contacts. Operating across temperatures from -40°C to +105°C, it has a 4.20mm pitch and a slim profile to optimize PCB space. Suitable for applications in telecommunications, networking, industrial, home appliances, and commercial vehicles.
Frequently Asked Questions
Where can I buy MOLEX 2125201002?
You can click on the BUY or RFQ button to purchase 2125201002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2125201002?
You can download the 2125201002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2125201002?
MOLEX
