MOLEX 353180420 Mini-Fit Power Header
The Mini-Fit Jr. Power Connector is a 4.20mm pitch header featuring dual rows, with 4 circuits made of durable nylon (PA Polyamide 6/6, 94V-2 rating). It is designed for wire-to-board power applications, supporting a maximum current of 13A per circuit at 250V. The right-angle configuration enhances space efficiency on PCB assemblies. Features include a tin plating, a 1.60mm PCB tail length, and compatibility with Mini-Fit receptacles. Suitable for operating temperatures from -40°C to +105°C, this connector complies with RoHS, UL, and CSA standards for electronic safety and environmental regulations.
MOLEX 353180420 Mini-Fit Power Header Specifications:
- Pitch: 4.20mm
- Number of Rows: 2
- Circuits (Loaded): 4
- Maximum Circuits: 4
- Color: Natural
- Material - Resin: Nylon
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Durability (mating cycles max): 30
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 250V
- Temperature Range - Operating: -40°C to +105°C
- PCB Tail Length: 1.60mm
- Flammability: UL 94V-0
- Surface Mount Compatible (SMC): No
- Shrouded Partial: Yes
- Stackable: No

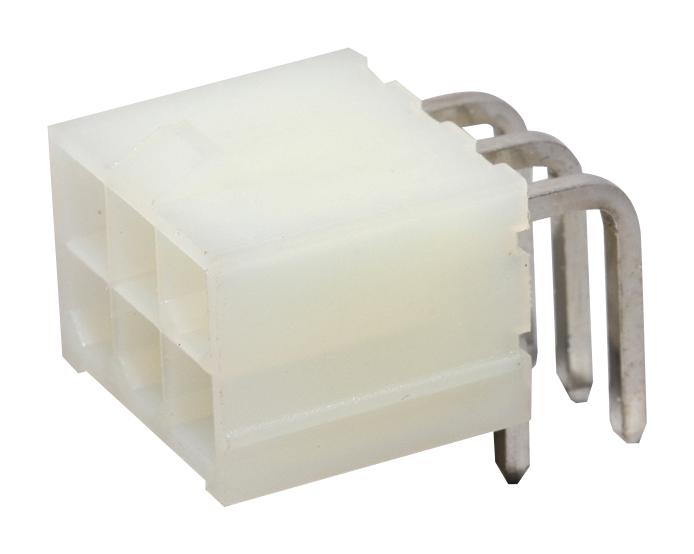

Buy the Molex Series Mini-Fit Jr Power Connector: 0353180420
Experience reliable power connections with the Molex Mini-Fit Jr. Power Header. Designed for durability and safety, it offers a 4.20mm pitch, dual rows, and supports up to 13A per circuit. Made from flame-retardant nylon with tin-plated contacts, this right-angle connector is ideal for compact PCB layouts. It meets RoHS, UL, and CSA standards, ensuring compliance with environmental and safety regulations. Perfect for power supply systems, automation, and control panels, ensuring efficient and secure electrical connections.
Get Molex 0353180420 today—built for power and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 353180420?
You can click on the BUY or RFQ button to purchase 353180420 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 353180420?
You can download the 353180420 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 353180420?
MOLEX
