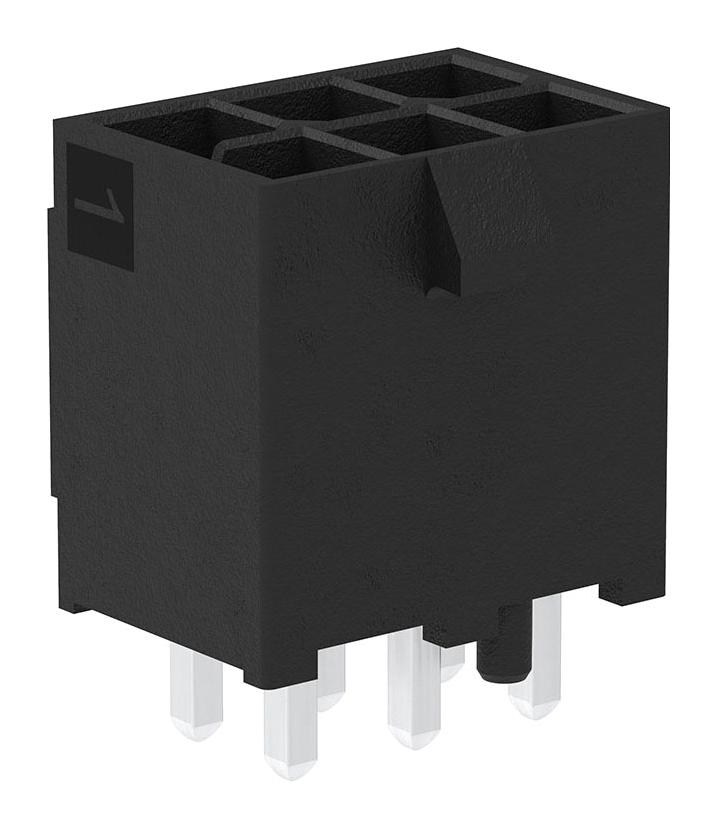

MOLEX 2125201004 Mini-Fit Max Vertical Header
The MOLEX 212520-1004 Mini-Fit Max Vertical Header is a robust solution for power and signal transmission in wire-to-board applications. Designed with a dual-row configuration and 4 circuits, this header provides a secure and reliable connection. The tin plating ensures excellent conductivity and corrosion resistance, while the black liquid crystal polymer resin offers durability and insulation. It is compatible with Mini-Fit Max crimp housings and features polarized design for ease of assembly and prevention of mis-mating. Its vertical orientation and PCB locator contribute to efficient board layout and assembly processes.
MOLEX 2125201004 Mini-Fit Max Vertical Header Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board
- circuits_loaded: 4
- circuits_maximum: 4
- color_resin: Black
- durability_mating_cycles: 30
- glow_wire_capable: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating_mating: Tin (Sn)
- material_resin: Liquid Crystal Polymer
- net_weight_g: 1.780
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Tray
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- temperature_range_operating_c: -40° to +105°
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 20.0
- voltage_maximum_ac_rms: 600V
- voltage_maximum_dc: 600V
- material_info_drawing_number: 2125200001-SD-000
