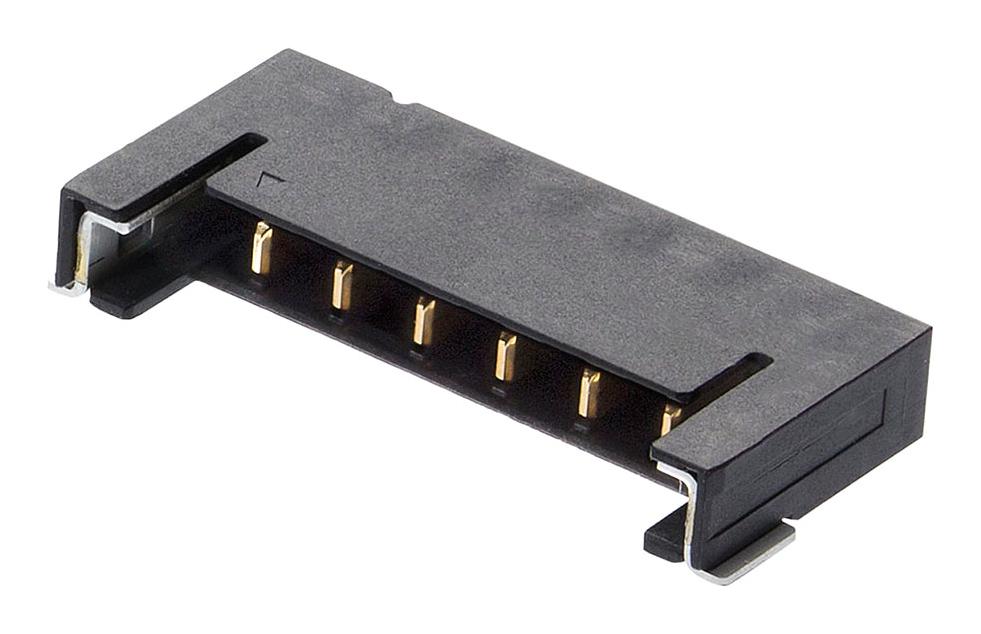

MOLEX 2053380006 Pico-Lock PCB Header
The MOLEX 205338-0006 is a Pico-Lock PCB header within the 205338 series, designed for robust wire-to-board connectivity. This header offers a 2.00mm pitch, right-angle orientation, and a positive lock mechanism for secure mating. It's ideal for applications requiring a reliable and compact connection solution, such as consumer electronics, industrial equipment, and automotive systems. The header features gold plating for enhanced conductivity and durability, and is compatible with Pico-Lock housings.
MOLEX 2053380006 Pico-Lock PCB Header Specifications:
- series: 205338
- application_overview: Signal, Wire-to-Board
- circuits_max: 6
- durability_mating_cycles: 30
- guide_to_mating: No
- part_lock_to_mating_part: Yes
- pitch_mating_interface: 2.00mm
- pitch_termination_interface: 2.00mm
- plating_min_mating: 0.100µm
- polarized_to_mating_part: Yes
- shrouded: Fully
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- material_metal: Copper Alloy
- material_plating: Gold
- material_resin: Polyamide
- net_weight: 364.360/mg
- number_of_rows: 1
- orientation: Right Angle
- packaging_type: Embossed Tape on Reel
- upc: 191130509799
