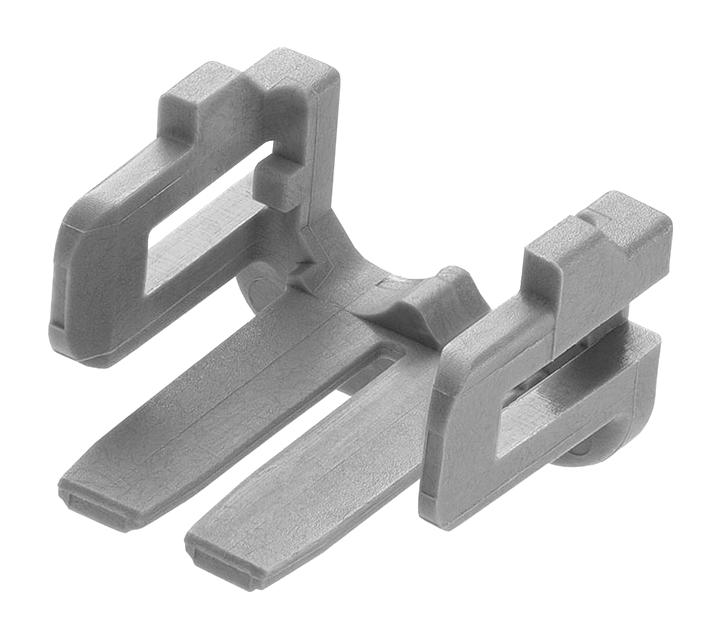

MOLEX 2127242021 Micro-One Wire-to-Board Connector
The MOLEX 212724-2021 is a Micro-One wire-to-board receptacle housing, part of the 212724 series. This connector is designed for power applications and offers a 2.00mm pitch with glow-wire capability, accommodating 2 circuits. Constructed from Polyamide resin, it provides durability and reliable performance in wire-to-board connections. It is RoHS Compliant and features a keyed design for secure mating. Ideal for applications requiring a compact and robust wire-to-board solution.
MOLEX 2127242021 Micro-One Wire-to-Board Connector Specifications:
- status: Active
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Receptacle Housing, 2.00mm Pitch, Glow-Wire Capable, 2 Circuits
- agency_certification: UL E29179
- product_family: Crimp Housings
- series: 212724
- application: Power, Wire-to-Board
- circuits_maximum: 2
- color_resin: Black
- gender: Female
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight: 191.270/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: No
- stackable: No
- temperature_range_operating: -40° to +105°C
- upc: 193264613472
- mates_with: Micro-One TPA Retainer 212725, MicroOne Vertical Header 217063, Micro-One Right-Angle Header 217064
- use_with: Micro-One Female Crimp Terminal 56134
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- phthalates: Not Contained
