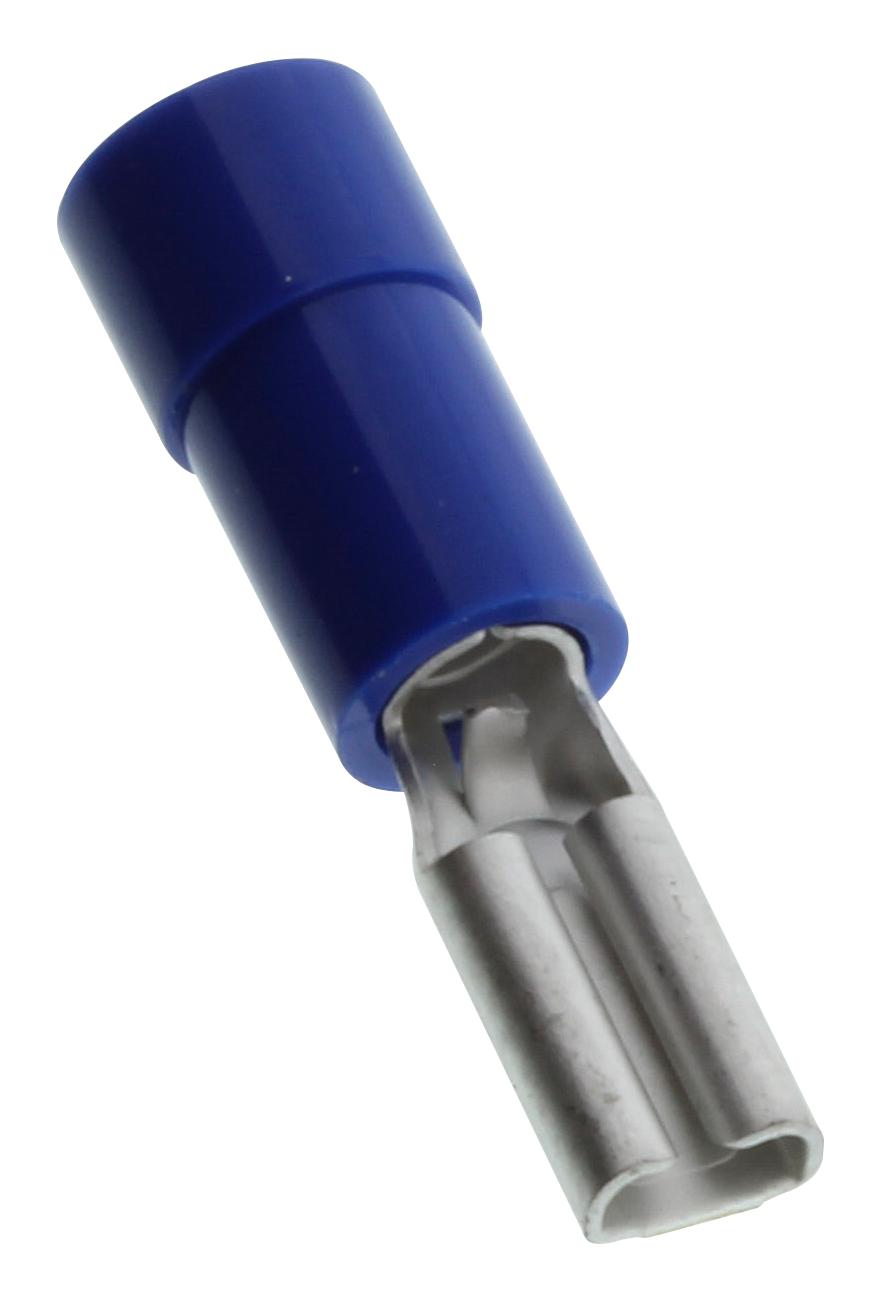

MOLEX 190170023 Quick Disconnect Female Terminal
The InsulKrimp Quick Disconnect female terminal is designed for 14-16 AWG wires with a crimp or compression termination style. Constructed from brass with a tin plating, it features a blue insulation that is UV-resistant and flame-retardant according to UL 94V-0 standards. Suitable for operating temperatures from -50°C to +105°C, it handles a maximum voltage of 600V. The terminal's dimensions include a tab width of 2.79mm, a thickness of 0.51mm, and a length of approximately 2.79mm. It is compliant with RoHS and China RoHS standards, making it an ideal choice for reliable electrical separation in various industrial and commercial applications.
MOLEX 190170023 Quick Disconnect Female Terminal Specifications:
- Wire Size: 14-16 AWG (1.30-2.00 mm²)
- Material: Brass with Tin plating
- Insulation: PVC, Blue color
- Voltage Rating: 600V
- Temperature Range: -50°C to +105°C
- Tab Width: 2.79mm
- Tab Thickness: 0.51mm
- Flammability: UL 94V-0
- Certification: CSA, UL
- Plating Min - Mating: 2.540um
- Plating Min - Termination: 2.540um
- Mechanical: Crimp or Compression termination
- Packaging: Bag
- Dimensions: Length approx. 2.79mm, Width 2.79mm, Thickness 0.51mm
- Application: Suitable for quick disconnect applications in various electrical assemblies
Buy the Molex Series InsulKrimp Quick Disconnect: 190170023
Purchase the Molex InsulKrimp Quick Disconnect Female Terminal type designed for 14-16 AWG wires. Made from durable brass with tin plating, it ensures excellent electrical conductivity and corrosion resistance. The blue insulation offers safety and visibility, while UL 94V-0 flammability compliance guarantees safety. Suitable for crimp or compression assembly, its operating temperature spans from -50°C to +105°C, supporting voltage up to 600V. This terminal is ideal for reliable electrical connections in industrial, commercial, and control systems, ensuring a secure and long-lasting connection.
Buy Molex 190170023 now and experience unmatched reliability and performance with high-quality crimp connectors suitable for industrial wiring.
Frequently Asked Questions
Where can I buy MOLEX 190170023?
You can click on the BUY or RFQ button to purchase 190170023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190170023?
You can download the 190170023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190170023?
MOLEX
