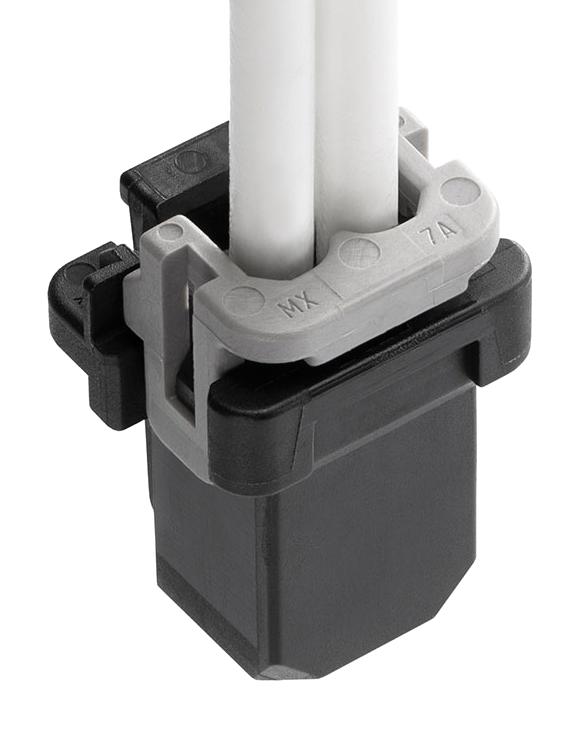

MOLEX 2127242031 Micro-One Wire-to-Board Connector
The MOLEX 212724-2031 is a Micro-One wire-to-board receptacle housing, part of the 212724 series. This connector is designed for secure and reliable wire-to-board connections, commonly used in power applications. It boasts a 2.00mm pitch, accommodating 3 circuits, and is glow-wire capable, meeting stringent safety standards. Constructed from polyamide resin, this housing offers durability and excellent electrical insulation. It is compatible with Micro-One TPA retainers and female crimp terminals, facilitating easy assembly and integration into various industrial systems.
MOLEX 2127242031 Micro-One Wire-to-Board Connector Specifications:
- status: Active
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Receptacle Housing, 2.00mm Pitch, Glow-Wire Capable, 3 Circuits
- agency_certification: UL E29179
- product_family: Crimp Housings
- series: 212724
- application: Power, Wire-to-Board
- circuits_maximum: 3
- color: Black
- gender: Female
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material: Polyamide
- net_weight: 258.310/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: No
- stackable: No
- temperature_range_operating: -40° to +105°C
- upc: 193264613496
- material_info_reference_drawing_numbers: Application Specification 2059790000-AS-000, Packaging Specification 2127249200-SPK-200, Product Specification 2059790000-PS-000, Sales Drawing 2127240000-SD-000
- mates_with: Micro-One TPA Retainer 212725, MicroOne Vertical Header 217063, Micro-One Right-Angle Header 217064
- use_with: Micro-One Female Crimp Terminal 56134
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained
- halogen_free_status: Not Low-Halogen
- reach_svhc: Not Contained
Buy the 212724-2031 MOLEX Micro-One Wire-to-Board Connector | myMectronic
Purchase the MOLEX 212724-2031 Micro-One Wire-to-Board Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2127242031?
You can click on the BUY or RFQ button to purchase 2127242031 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2127242031?
You can download the 2127242031 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2127242031?
MOLEX
