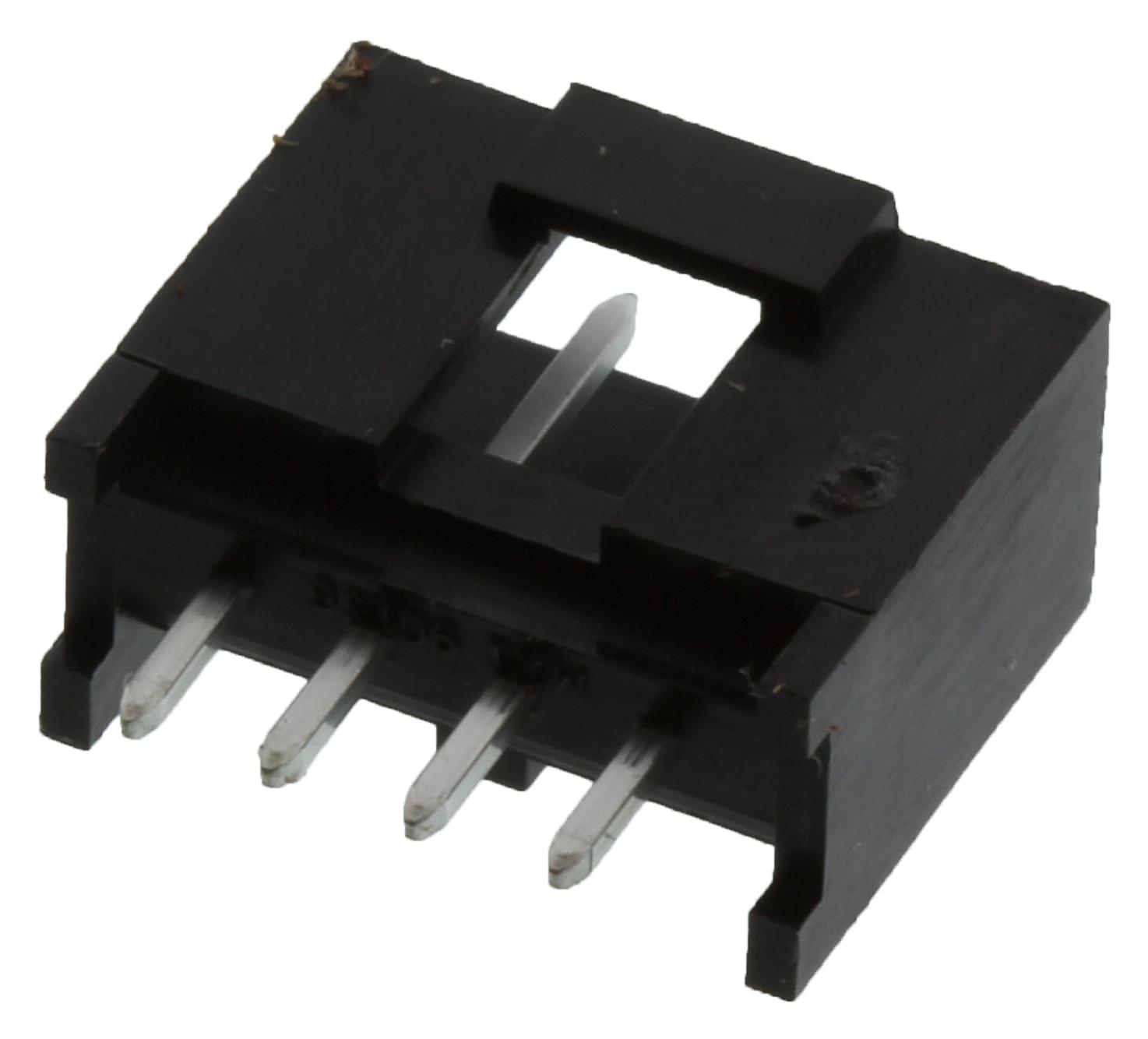

MOLEX 901361104 Wire-to-Board Connector
The C-Grid III Header is a vertical, shrouded, single-row connector with 4 circuits, designed for wire-to-board applications. Made of brass with tin plating, it operates within a temperature range of -55°C to +125°C. It features a 2.54mm pitch for mating and termination interfaces, and is RoHS and UL compliant. Suitable for various electronic assemblies, it provides reliable electrical connection with a maximum current of 3.0A per contact and a maximum voltage of 350V AC/DC, ensuring durability and safety in industrial and consumer electronics.
MOLEX 901361104 Wire-to-Board Connector Specifications:
- Number of Circuits: 4
- Orientation: Vertical
- Pitch - Mating Interface: 2.54mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Temperature Range: -55°C to +125°C
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 350V AC/DC
- Flammability: 94V-0
- Color - Resin: Black
- Shrouded: Yes
- PCB Thickness - Recommended: 1.60mm
- Net Weight: 0.768g
- Packaging Type: Tray
- RoHS: Compliant
- UL: Listed
- Agency Certifications: CSA, UL
- First Mate / Last Break: No
- Lock to Mating Part: Yes
- Physical Length: 2.90mm
- PCB Retention: Yes
Buy the Molex Series C-Grid III Connector: 901361104
Purchase the Molex C-Grid III Wire-to-Board Connector now for reliable electrical connections in your electronic projects. Featuring a vertical, shrouded design with 4 circuits and a 2.54mm pitch, it ensures secure mating and durability. Made from high-quality brass with tin plating, it operates efficiently across a temperature range of -55°C to +125°C. UL and RoHS compliant, it handles up to 3.0A per contact and 350V, providing safety and dependability for industrial, consumer, and electronic applications. Buy online today for quick delivery and trusted quality.
Get Molex 901361104 today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 901361104?
You can click on the BUY or RFQ button to purchase 901361104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901361104?
You can download the 901361104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901361104?
MOLEX
