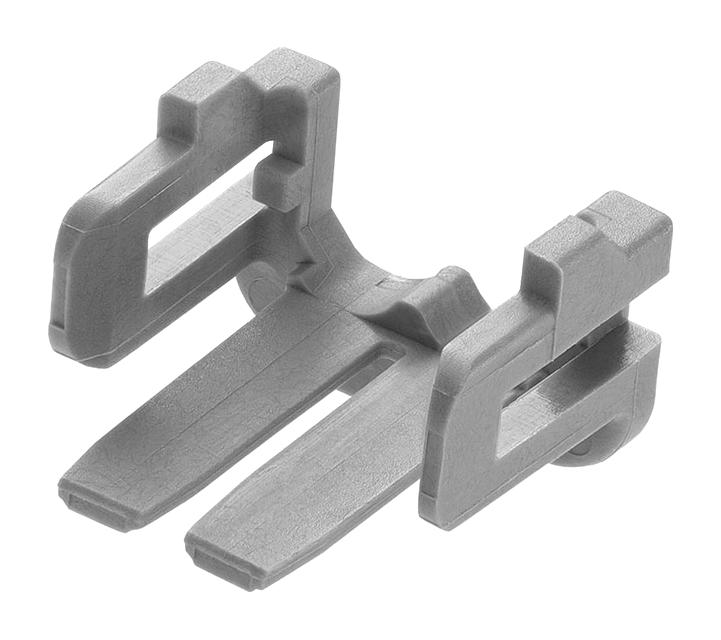

MOLEX 2127252020 Micro-One Connector
The MOLEX 212725-2020 is a Micro-One terminal position assurance (TPA) retainer, a crucial component within the Micro-One wire-to-board connector system. This retainer provides a secure and reliable connection by ensuring proper terminal placement. It is designed for applications requiring a compact and robust connector solution, commonly found in consumer electronics, automotive, and industrial equipment. The retainer’s glow-wire capability and polyamide resin material contribute to its durability and performance in various environmental conditions. It is RoHS compliant and features a temperature operating range of -40°C to +105°C, making it suitable for a wide range of applications.
MOLEX 2127252020 Micro-One Connector Specifications:
- product_family: Accessories
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Terminal Position Assurance (TPA) Retainer, 2 Circuits, 2.00mm Pitch, Glow-Wire Capable, Gray
- circuits_loaded: 2
- circuits_maximum: 2
- color_resin: Gray
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight: 45.360/mg
- number_of_rows: 1
- packaging_type: Bag
- temperature_range_operating: -40°C to +105°C
- ul_certification: E29179
- upc: 193264613908
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Not Contained Per D(2020)9139-DC
- halogen_free_status: Not Low-Halogen
- drawing_numbers: 2059790000-AS-000, 2127259200-SPK-200
- product_specification: 2059790000-PS-000
- sales_drawing: 2127250000-SD-000
- use_with: Micro-One Receptacle Housing 212724
