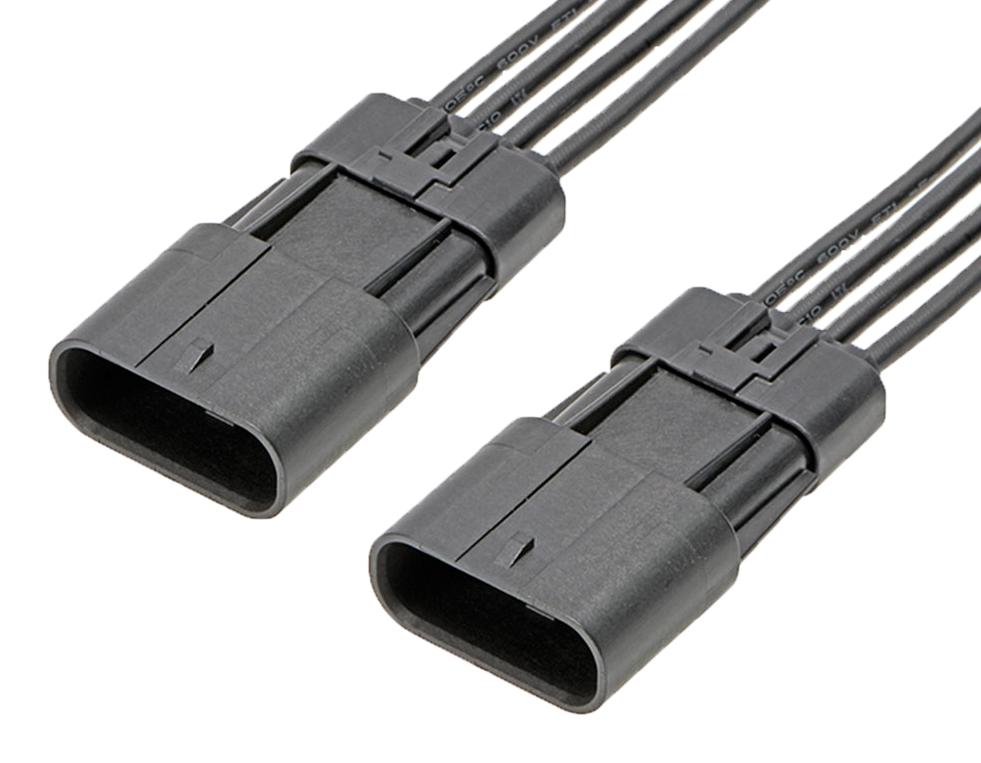

MOLEX 2166221043 Sealed Wire Connector
The Squba 3.6mm pitch sealed wire-to-wire connector system provides reliable power connections with an IP67 rating, rated for 14A and 600V. Its patent-pending design features a secure wraparound insulation crimp and primary lock with 40N terminal retention, suitable for space-constrained applications in consumer, industrial, and commercial vehicles. Constructed with nylon housing and copper alloy contacts, it includes seal caps for protection during shipping and operation. Certified by UL and CSA, ensuring durability of at least 25 connection cycles while maintaining seal integrity and proper alignment during insertion.
MOLEX 2166221043 Sealed Wire Connector Specifications:
- Pitch: 3.60mm
- Number of Circuits: 4
- Cable Length: 600.00mm
- Color - Resin: Black
- Gender: Male-Male
- Material - Metal: Copper Alloy
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V
- Lock to Mating Part: Yes, primary lock with 40N terminal retention
- Sealing: IP67 environmental rating with seal caps
- Durability: At least 25 connection cycles
- Wire Insulation Diameter: 1.90mm-2.40mm
- Wire Size AWG: 16
- Application: Discrete wire, sealed connection
Buy the Buy Molex Squba Sealed Wire-to-Wire Connector Part Number 2166221043 Online
Order the Molex Sealed Wire Connector 2166221043 online today to ensure your power connection needs are met with durability and environmental resistance. This IP67-rated connector is designed for space-constrained applications, offering secure locking, reliable sealing, and rated for 14A at 600V. Made with high-quality nylon housing and copper alloy contacts, it features seal caps for improved protection during shipping and use. Suitable for industrial and automotive environments, it ensures a reliable, vibration-resistant connection with at least 25 connection cycles, delivering long-lasting performance.
Buy Molex 2166221043 now and experience unmatched reliability and performance with secure sealing and IP67 environmental protection in your applications.
