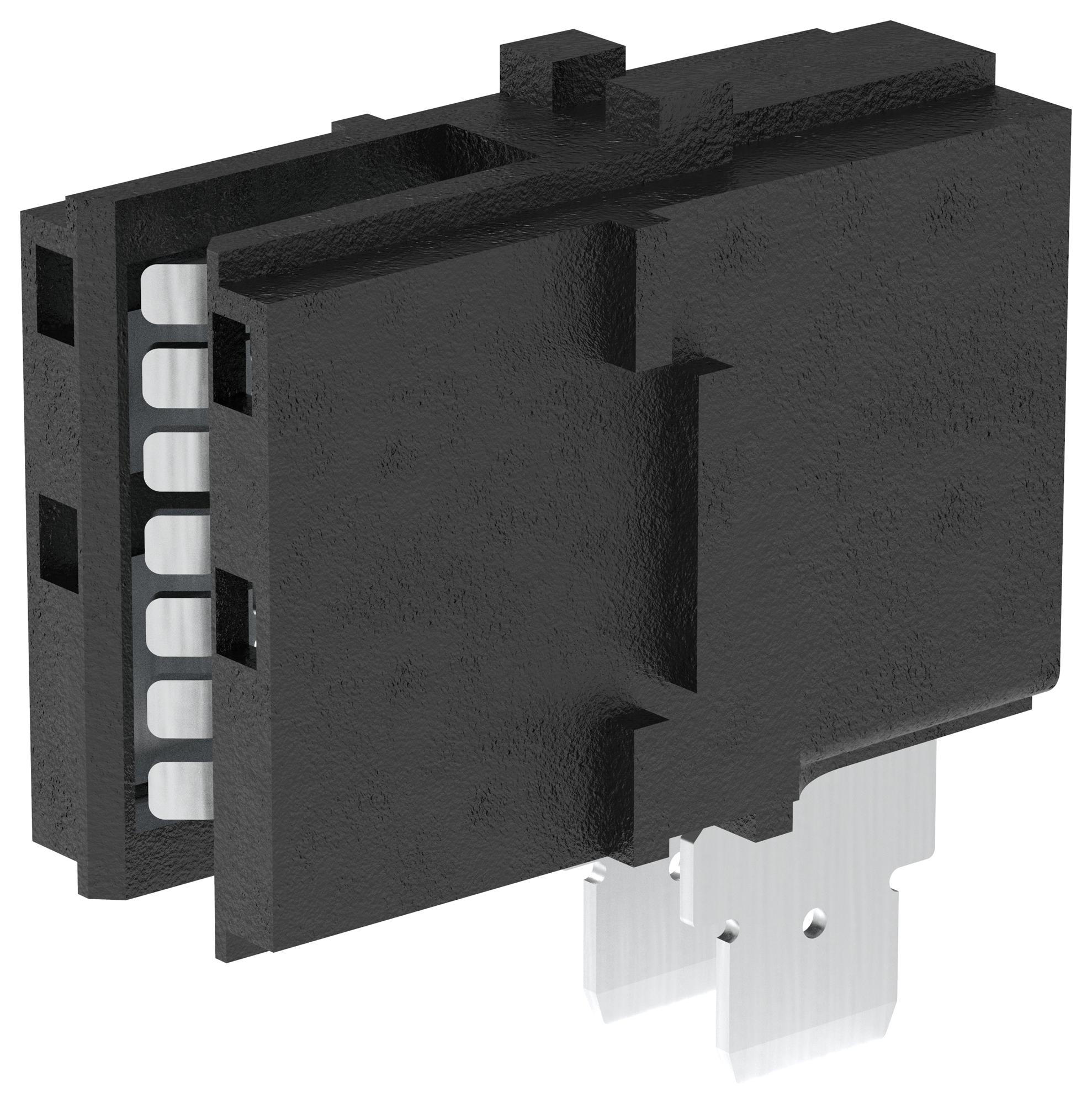

MOLEX 2132050001 PowerBus Receptacle
The 213205 series PowerPlane busbar receptacle assembly features a right-angle, through-hole solder tab design compatible with 3mm and 3.18mm thick bus bars. Made from black liquid crystal polymer resin, it offers durability for up to 100 mating cycles. Constructed from copper alloy with silver plating for the mating side and tin plating for termination, it operates within a temperature range of -40°C to +105°C. The contact supports a maximum current of 200A and a maximum voltage of 600VAC. It is polarized for PCB mounting.
MOLEX 2132050001 PowerBus Receptacle Specifications:
- Series: PowerPlane
- Product Family: PCB Receptacles
- Number of Circuits: 7
- Color - Resin: Black
- Durability (mating cycles max): 100
- Material - Metal: Copper Alloy
- Material - Plating Mating: Silver
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 200A
- Voltage - Maximum: 600VAC
- Orientation: Right Angle
- Terminations: Through Hole
- PCB Thickness - Recommended: 3.0mm and 3.18mm
- Net Weight: 11.721 grams
- Polarized to PCB: Yes
Buy the Molex Series PowerPlane PowerConnectors: 2132050001
Purchase Molex PowerBus Receptacle for durable, high-current busbar connections. Designed with a right-angle, through-hole solder tab for easy mounting. Made from high-quality liquid crystal polymer and copper alloy, it supports up to 200A and 600VAC. Its black resin withstands temperatures from -40°C to +105°C, ensuring reliable operation in demanding environments. Compatible with 3mm and 3.18mm thick bus bars, it offers up to 100 mating cycles, making it ideal for industrial power distribution and electrical systems. Buy now for dependable performance.
Get Molex 2132050001 today—built for high current and reliable PCB power connections with durable polymer housing.
