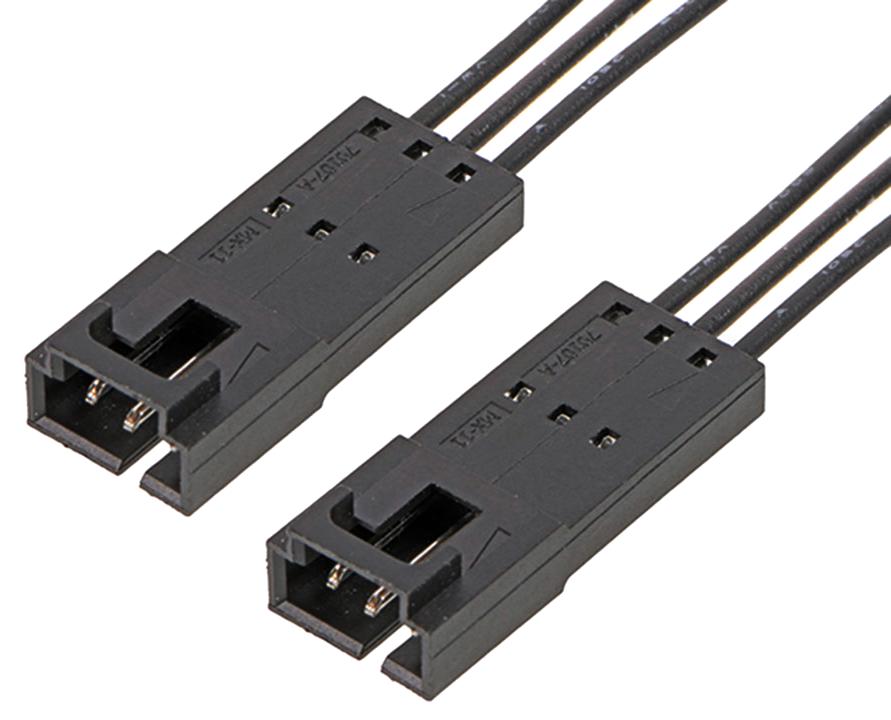

MOLEX 2162721030 Cable Assembly
The off-the-shelf stackable linear positive lock cable assembly supports prototyping and mass production, offering reliable electrical connections. It features options for crimp, FFC, and IDT terminations, with a low-profile, stackable housing suitable for consumer, industrial, automotive, and telecommunications applications. The connector includes dual contact points and a connector position assurance lock for high-vibration environments. Made from polyester alloy with tin-plated phosphor bronze contacts, it operates from -40°C to +105°C, with a maximum voltage of 600V and current of 3A, ensuring durability over 25 mating cycles.
MOLEX 2162721030 Cable Assembly Specifications:
- Connector Type: Stackable linear positive lock
- Cable Length: 50.00mm
- Circuits: 3
- Color: Black
- Gender: Male-Male
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Wire Insulation Diameter: 1.63mm max.
- Wire Size: 22 AWG
- Electrical Current Max: 3A
- Voltage Max: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Standards Compliance: UL, CSA
Buy the Molex 2162721030 – Reliable Stackable Locking Cable Assembly for Industrial Applications
Purchase the Molex 2162721030 stackable linear positive lock cable assembly online today for dependable electrical connections in industrial, automotive, telecommunications, and medical sectors. Designed for prototyping and mass production, it features dual independent contact points, a connector position assurance lock for high vibration resistance, and a compact, stackable housing. Made from durable polyester alloy with tin-plated phosphor bronze contacts, it handles voltages up to 600V and currents up to 3A, withstanding up to 25 mating cycles at temperatures from -40°C to +105°C. Order now for reliable performance.
Buy Molex 2162721030 now and experience unmatched reliability and performance in high-vibration environments with secure, durable connections.
Frequently Asked Questions
Where can I buy MOLEX 2162721030?
You can click on the BUY or RFQ button to purchase 2162721030 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162721030?
You can download the 2162721030 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162721030?
MOLEX
