MOLEX 2132250210 Wire-to-Board Connector
The 3D Model includes the CLIK-Mate wire-to-board PCB receptacle with a 1.50mm pitch, featuring a single row, surface mount design, and gold plated contacts. Designed for reliable electrical connections, the connector supports up to 2 circuits with a maximum of 2 circuits loaded. Constructed with copper alloy and polyamide resin, it offers durability with up to 30 mating cycles. Operates at temperatures from -40°C to +105°C, and is RoHS, Reach SVHC compliant, halogen-free, and suitable for applications requiring low-profile, surface-mount connectors capable of handling up to 2.0A and 100V AC/DC.
MOLEX 2132250210 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits (Loaded): 2
- Maximum Circuits: 2
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Material - Resin: Polyamide
- Color - Resin: Natural
- Durability (mating cycles max): 30
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 2.0A
- Voltage - Maximum: 100V AC/DC
- Surface Mount Compatible: Yes
- RoHS Compliance: Yes
- Reach SVHC: Not Contained
- Halogen-Free: Yes
- Packaging Type: Embossed Tape on Reel
- Orientation: Vertical
- Lock to Mating Part: Yes
- PCB Retention: Yes

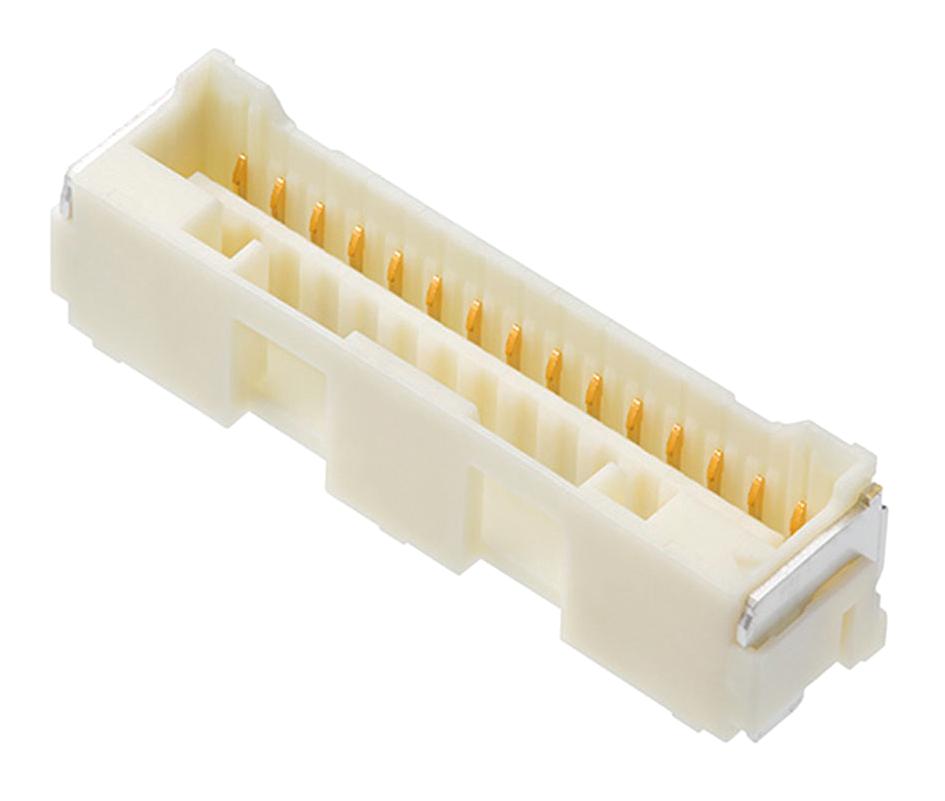

Buy the Buy Molex 3D Model Part Number 2132250210 Online
Order the Molex wire-to-board connector with 1.50mm pitch for secure electronic connections. Featuring gold-plated contacts, it supports 2 circuits, is surface mount compatible, RoHS and Reach compliant, with a temperature range from -40°C to +105°C. Built with durable materials like copper alloy and polyamide resin, it withstands up to 30 mating cycles and handles up to 2.0A and 100V AC/DC. Ideal for reliable, high-performance PCB wiring in various electronic applications, available for quick purchase online.
Get Molex 2132250210 today—designed for reliable surface mount PCB connections with gold-plated contacts and high durability.
