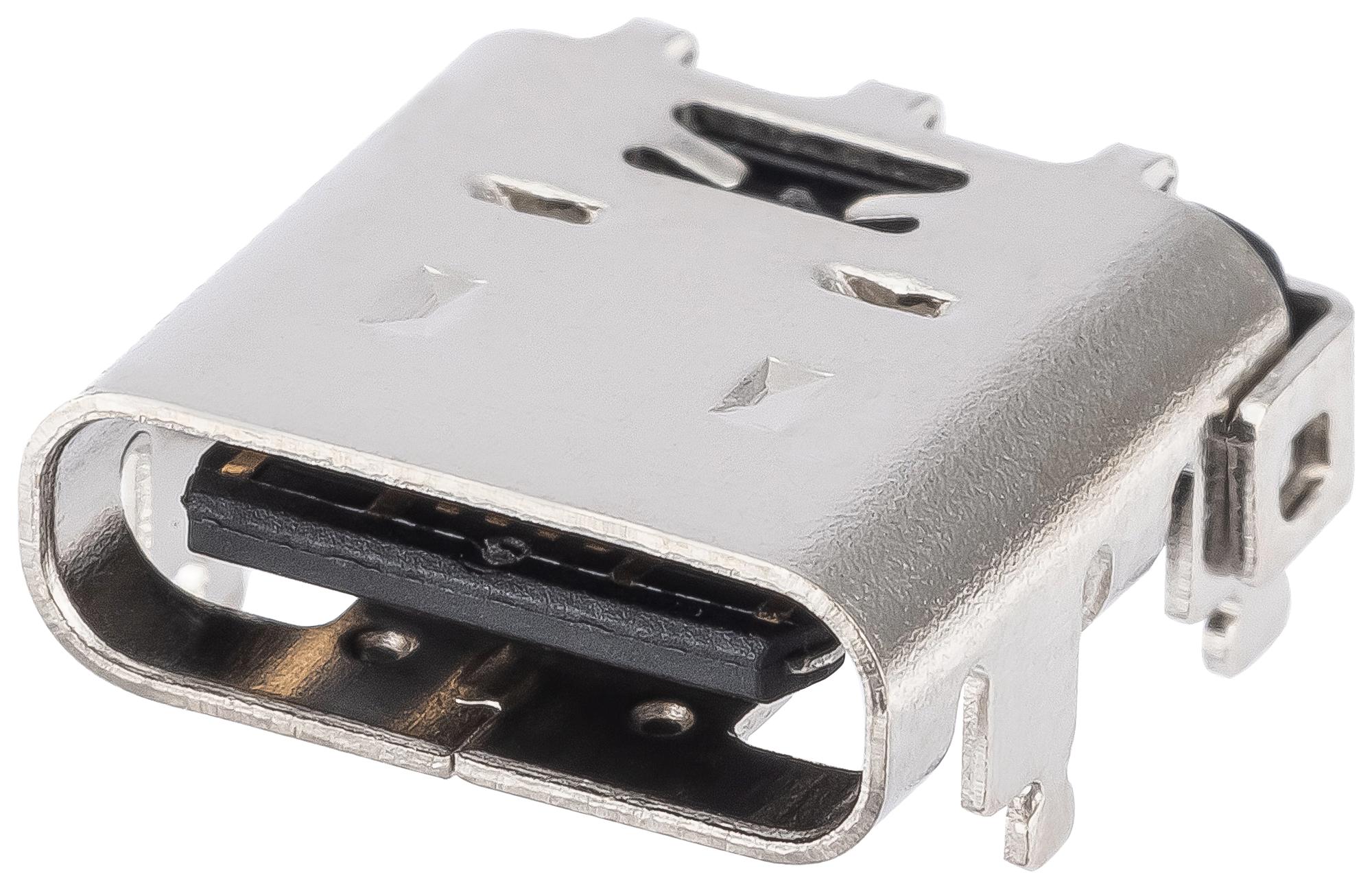

MOLEX 2137160001 USB C Receptacle Connector
The MOLEX 213716-0001 is a robust USB Type C shielded I/O receptacle, ideal for wire-to-board applications requiring a right-angle, top mount design. This connector offers a dual-row configuration and surface mount capability, making it suitable for a wide range of electronic devices. The gold flash over palladium nickel plating ensures reliable connectivity and signal transmission. It is designed for applications needing a secure and durable USB Type C connection, offering excellent performance and longevity.
MOLEX 2137160001 USB C Receptacle Connector Specifications:
- circuits_loaded: 16
- circuits_maximum: 16
- color_resin: Black
- durability_mating_cycles: 10000
- gender: Female
- keying: None
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating: Gold over Palladium Nickel
- material_resin: High Temperature Thermoplastic
- net_weight_g: 0.583
- number_of_rows: 2
- orientation: Right Angle
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended_mm: 0.80
- packaging_type: Embossed Tape on Reel
- panel_mount: Yes
- pitch_mating_interface_mm: 0.50
- pitch_termination_interface_mm: 0.50
- plating_min_mating_um: 0.762
- polarized_to_mating_part: No
- polarized_to_pcb: No
- surface_mount_compatible: Yes
- temperature_range_operating_c: -30° to +85°
- termination_interface_style: Surface Mount
- waterproof_dustproof: Yes
- current_max_per_contact_a: 5.0
- grounding_to_panel: None
- shield_type: Full Shield
- shielded: Yes
- voltage_max_ac_dc_v: 30
