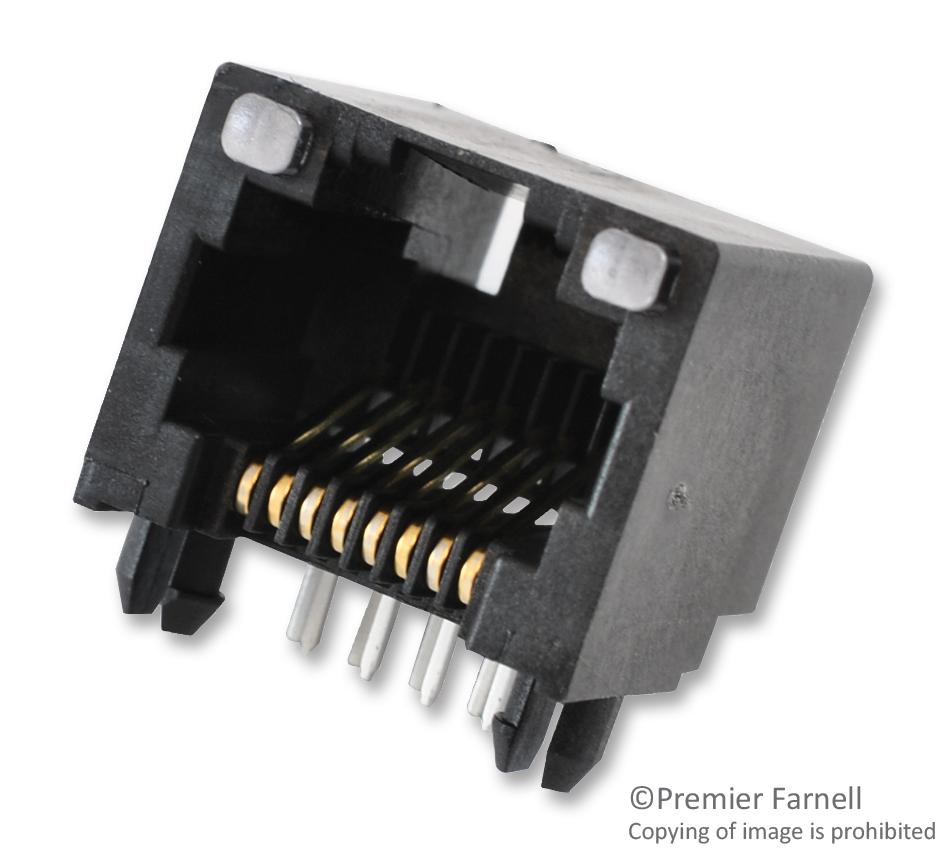

MOLEX 438600007 Ethernet Modular Jack
The Modular Jack, Right-Angle, Low Profile, Inverted, 8/8 configuration, is designed for high-performance Ethernet applications including Power over Ethernet (PoE). Constructed with durable materials, it features a black and clear resin body, and gold-plated contacts for reliable data transmission. The jack supports 8/8 positions, withstands up to 500 mating cycles, and operates across a temperature range of -40°C to +85°C. Its compact design includes lightpipes for LEDs, flexible mounting options, and complies with RoHS and UL standards, ensuring safety and environmental compliance.
MOLEX 438600007 Ethernet Modular Jack Specifications:
- Series: 43860
- Component Type: Magnetic
- Product Family: Modular Jacks/Plugs
- Port Configuration: 8/8
- Mating Cycles Max: 500
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic, Polycarbonate
- Color - Resin: Black, Clear
- Flammability: 94V-0
- Contact Rating: 1.5A per contact
- Voltage - Max: 150V AC (RMS)
- Operating Temperature Range: -40°C to +85°C
- Dimensions: Jack Height 13.21mm, Mating Pitch 1.27mm
- Waterproof / Dustproof: No
- Surface Mount Compatible: No
- PCB Thickness - Recommended: 1.60mm
- Port Size: Standard RJ45 8/8
- Certifications: UL, CSA
- RoHS Compliant: Yes
Buy the Buy Molex Modular Jack Part Number 438600007 Online
Purchase the Molex Ethernet Modular Jack for reliable high-speed data transmission in network applications. Its right-angle, low-profile design saves space, while gold-plated contacts ensure optimal contact performance. Built to withstand 500 mating cycles, it operates across a wide temperature range from -40°C to +85°C and is RoHS and UL compliant for safety and environmental standards. Perfect for power over Ethernet and industrial networking, this compact, durable jack provides secure connections, LED lightpipes, and a sturdy plastic body for long-term use.
Buy Molex 438600007 now and experience unmatched reliability and high-performance Ethernet connectivity with robust, RoHS-compliant design.
Frequently Asked Questions
Where can I buy MOLEX 438600007?
You can click on the BUY or RFQ button to purchase 438600007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 438600007?
You can download the 438600007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 438600007?
MOLEX
