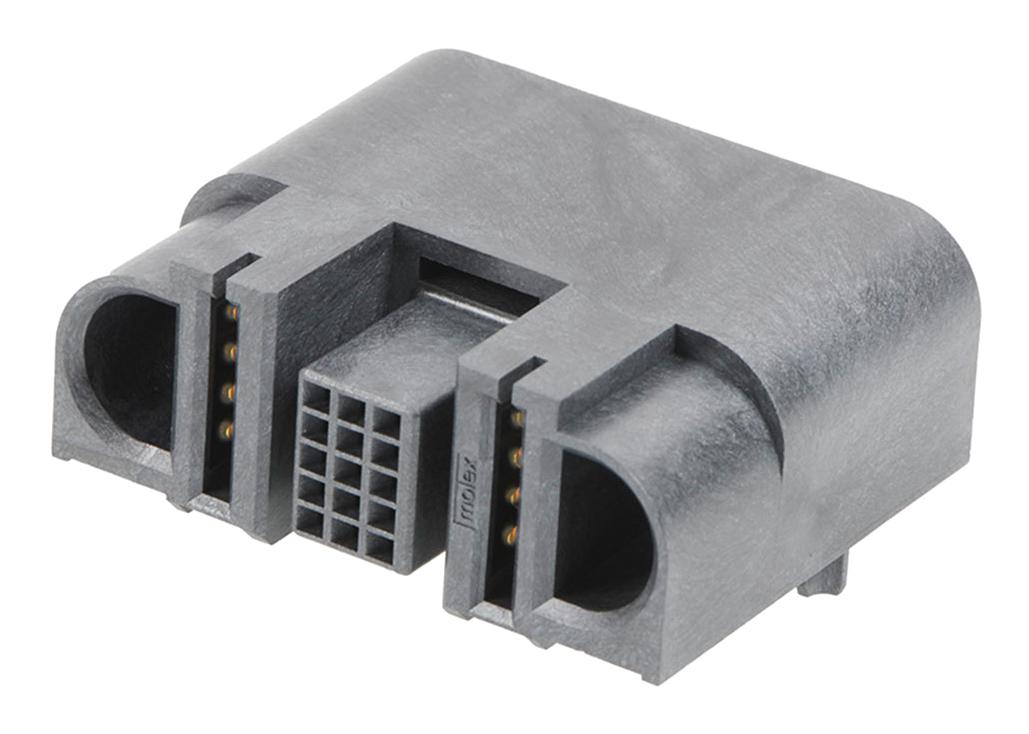

MOLEX 2141150011 Power Signal Connector
The Extreme Guardian HD power connectors provide a configurable hybrid solution for power and signal transmission in compact electronic systems. With high current density, these low-profile connectors support both AC and DC high-voltage applications up to 125V, featuring gold-plated contacts for low resistance. Including guide receivers and PCB pegs for precise alignment, each blade handles up to 80A, with a small centerline spacing of 5.15mm to reduce PCB footprint. Rated for temperatures from -40°C to +125°C, these connectors meet UL and CSA standards, constructed with a durable LCP housing, copper alloy contacts, and tin-solder tails for reliable industrial applications.
MOLEX 2141150011 Power Signal Connector Specifications:
- Current - Maximum per Contact: 80.0A
- Voltage - Maximum: 125V
- Material - Metal: High Conductivity Copper
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Temperature Range - Operating: -40°C to +125°C
- Dimensions: Centerline spacing 5.15mm, PCB tail length 1.58mm, right-angle orientation
- Durability (mating cycles max): 200
- Color - Resin: Black
- Number of Rows: 1
- Pitch - Mating Interface: 2.50mm, 3.30mm
- Certification: UL Listed, CSA Certified
- Termination Interface: Through Hole - Compliant Pin
- Net Weight: 14.690g
Buy the Molex 2141150011 – Reliable Power and Signal Connector for Industrial Applications
Secure your electronic systems with Molex 2141150011 power and signal connectors, designed for high current density and compact spaces. These connectors feature gold-plated contacts for low resistance, ensuring optimal electrical performance. Their robust construction with a thermoplastic housing and copper alloy contacts guarantees durability in demanding environments from -40°C to +125°C. Easy to mount with guide receivers and PCB pegs, they support a wide range of applications including industrial equipment, data centers, and networking hardware. Purchase online today for reliable, high-quality connectivity tailored to your needs.
Buy Molex 2141150011 power connectors now and experience unmatched reliability and high current capacity in your industrial, telecommunications, and data systems.
Frequently Asked Questions
Where can I buy MOLEX 2141150011?
You can click on the BUY or RFQ button to purchase 2141150011 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2141150011?
You can download the 2141150011 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2141150011?
MOLEX
