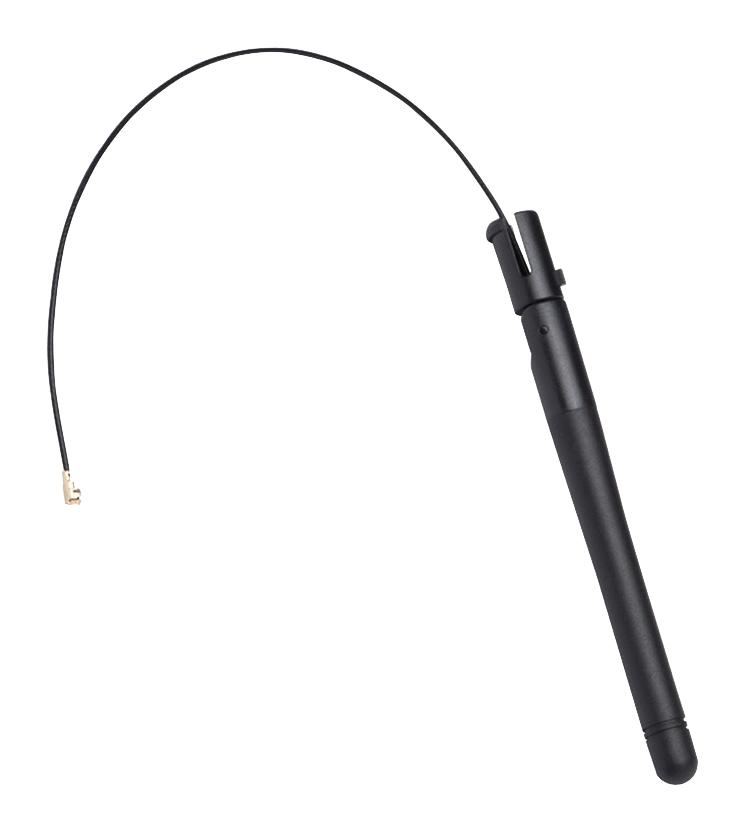

MOLEX 2144150011 2.4GHz Wi-Fi/BT Antenna
The MOLEX 214415-0011 is a 2.4GHz Wi-Fi/Bluetooth external antenna specifically engineered for Internet of Things (IoT) devices. Its hinged design allows for flexible positioning, while the reverse polar SMA male connector ensures compatibility with a wide range of systems. With a peak gain of 5.3 dBi and total efficiency exceeding 80% at 2.4 GHz, this antenna delivers reliable wireless connectivity. It is RoHS compliant and designed for applications requiring robust and versatile antenna solutions.
MOLEX 2144150011 2.4GHz Wi-Fi/BT Antenna Specifications:
- Product Family: Antennas
- Series: 214415
- Component Type: External Antenna
- Function: Signal
- Mates With: Reverse Polar SMA Female Receptacle
- Overview: Internet of Things (IoT) Antennas: Wi-Fi, Bluetooth, Zigbee
- Protocol: BT, Wi-Fi
- Type: External Antenna
- Length: 108.40mm
- Mounting Style: N/A
- Net Weight: 7.715/g
- Packaging Type: PET Bag
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Width: 9.35mm
- Band#1 F_End (MHz): 2500
- Band#1 F_Start (MHz): 2400
- Peak Gain (dBi): 5.3 @ 2.4 GHz
- Return Loss - S11 (dB): < -10
- Total Efficiency: >80% @ 2.4 GHz
- UPC: 193264434732
- Halogen-Free Status: Low-Halogen
- China RoHS: Compliant with Exemption 6(c)
- REACH SVHC: Contained Per - ECHA_01_2020 (16 January 2020) Lead
Buy the 214415-0011 MOLEX 2.4GHz Wi-Fi/BT Antenna | myMectronic
Securely purchase the MOLEX 214415-0011 antenna and ensure reliable connectivity for your IoT projects.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2144150011?
You can click on the BUY or RFQ button to purchase 2144150011 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2144150011?
You can download the 2144150011 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2144150011?
MOLEX
