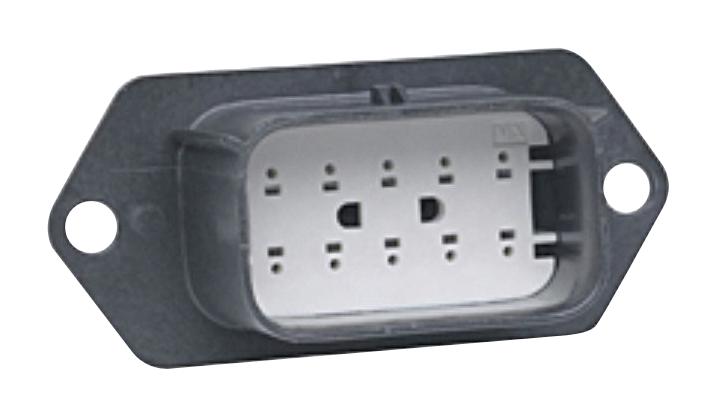

MOLEX 194290014 MX150L Panel Mount Plug
The MOLEX 19429-0014 is a robust MX150L industrial sealed connector system designed for demanding applications requiring a secure and reliable connection. This panel mount plug features 10 circuits and is specifically designed for inside panel mount applications. It is IP67 rated, conforming to UL 1977 standards, ensuring protection against dust and water. While suitable for various industrial environments, it is not recommended for automotive applications with specific USCAR or Toyota Connector Spec (TCS) requirements. The connector is designed for 14-22 AWG wire and offers a polarized and stackable design for ease of use and compatibility.
MOLEX 194290014 MX150L Panel Mount Plug Specifications:
- overview: MX150L Industrial Sealed Connector System
- application: Power, Wire-to-Wire
- comments: For Inside Panel Mount Application. IP67 rated; conforms to UL 1977.
- product_family: Crimp Housings
- series: 19429
- circuits_maximum: 10
- color_resin: Black
- flammability: 94V-0
- gender: Plug
- glow_wire_capable: No
- lock_to_mating_part: Yes
- net_weight_g: 18.050
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: Yes
- pitch_mating_interface: 5.84mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- eu_elv: Not Relevant
- eu_rohs: Not Reviewed
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- current_maximum_per_contact_a: 18.0
- mates_with: 19418 MX150L Receptacle Assemblies
- use_with: 19417 MX150L Male Crimp Terminals, 194270029 MX150L Gasket
