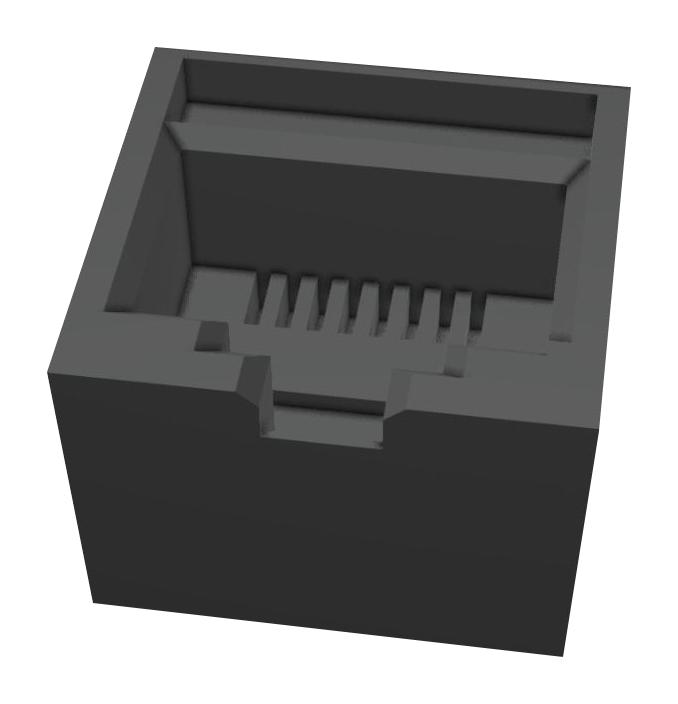

MOLEX 955032884 Ethernet Modular Jack
This modular jack is designed for power over Ethernet with a vertical, top-entry, through-hole design. It features an 8/8 port configuration, no key version, and a short tray packaging. Made from high-temperature thermoplastic with gold over palladium nickel contacts, it provides reliable performance for networking applications. The device supports 125V DC voltage and up to 1.5A current per contact, with 2500 mating cycles. Suitable for industrial and commercial networking environments, it meets RoHS and UL standards, ensuring safety, durability, and environmental compliance.
MOLEX 955032884 Ethernet Modular Jack Specifications:
- Series: 95503
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Port Configuration: 1x1, 8/8
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Flammability: 94V-0
- Durability (mating cycles max): 2500
- Jack Height: 12.70mm
- Termination Interface: Through Hole
- Temperature Range - Operating: -40°C to +85°C
- Voltage - Maximum: 125V DC
- Current - Maximum per Contact: 1.5A
- Waterproof / Dustproof: No
- Surface Mount Compatible (SMC): No
- PCB Thickness - Recommended: 1.57mm
- Net Weight: 2.570g
- Packaging Type: Tray
- Orientation: Vertical (Top Entry)
- Certifications: UL, RoHS, EU ELV, REACH SVHC compliant
Buy the Buy Molex Modular Jack Part Number 955032884 Online
Purchase the Molex Ethernet Modular Jack online to ensure quick delivery of high-quality, reliable networking components. Designed for PoE applications, this 8/8 port jack offers excellent durability with up to 2500 mating cycles, RoHS and UL compliance, and a compact vertical top-entry design. Its gold over palladium nickel contacts guarantee seamless connectivity. Ideal for industrial and commercial networking setups, it provides a stable connection, voltage of 125V DC, and current capacity of 1.5A per contact. Buy now and enhance your network performance with proven, robust components.
Buy Molex 955032884 now and experience unmatched reliability and performance in networking with high durability and RoHS compliance.
Frequently Asked Questions
Where can I buy MOLEX 955032884?
You can click on the BUY or RFQ button to purchase 955032884 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 955032884?
You can download the 955032884 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 955032884?
MOLEX
