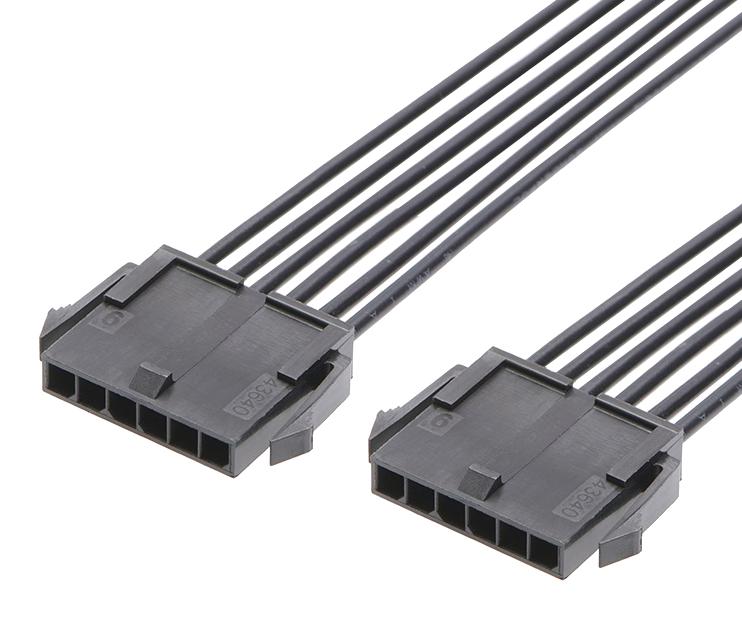

MOLEX 2147501022 Micro-Fit 3.0 Cable Assembly
The MOLEX 214750-1022 is a Micro-Fit 3.0 female-to-female cable assembly, ideal for connecting power and signal lines in wire-to-board and wire-to-wire applications. This assembly offers a robust connection with a 300mm length and tin plating for enhanced conductivity and corrosion resistance. It is designed to mate with Micro-Fit 3.0 plug housings and headers, providing a versatile solution for various industrial and commercial applications.
Authorized Distributors
Source:Mouser Electronics
Part No:214750-1022
Stock:394
Inv Date:05-30-2026
Price: Unit price: $3
Buy/RFQ:
Source:RS Americas, Inc
Part No:214750-1022
Stock:0
Inv Date:05-29-2026
Price: Unit price: $2.55
Buy/RFQ:
MOLEX 2147501022 Micro-Fit 3.0 Cable Assembly Specifications:
- overview: Micro-Fit Connector System
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Micro-Fit 3.0 Both Ends
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight: 7.688/g
- number_of_rows: 1
- pitch_mating_interface: 3.00mm
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: No
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: Discrete Wire, UL 10002
- current_maximum_per_contact: 8.5A
- upc: 193264584055
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Micro-Fit 3.0 Plug Housings, Micro-Fit TPA Plug Housing, Micro-Fit 3.0 Headers
- drawing_number: 2147501021-000
