MOLEX 2157102122 Clik-Mate Male-to-Male Lead

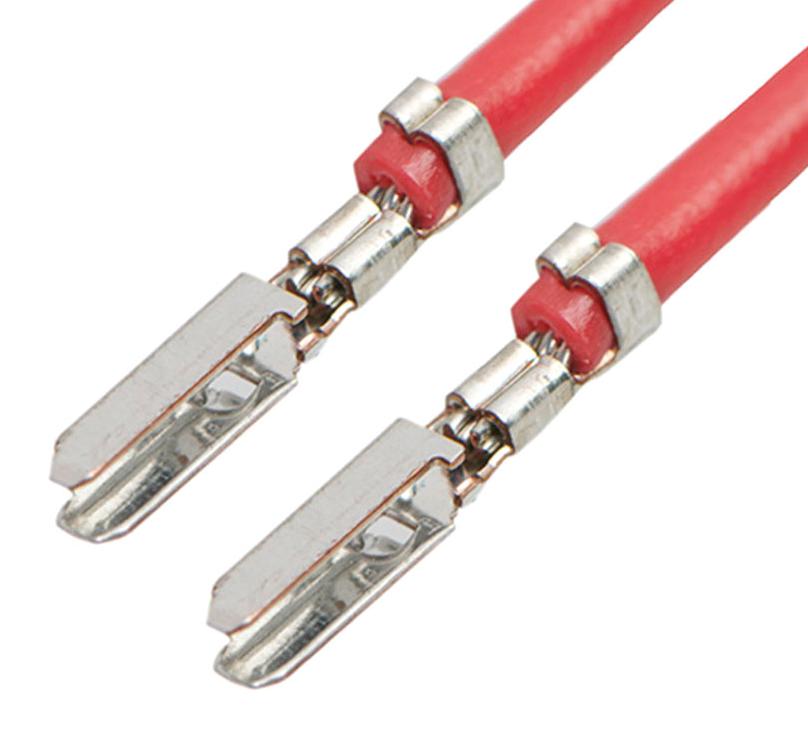

The MOLEX 215710-2122 is a pre-crimped lead assembly, part of the CLIK-Mate series, designed for signal transmission in wire-to-board applications. This assembly provides a convenient, ready-to-use connection solution, eliminating the need for on-site crimping. It features a male-to-male CLIK-Mate connector configuration, ensuring compatibility within the CLIK-Mate system. The lead is tin-plated for reliable electrical contact and is 150.00mm in length, suitable for a variety of connection scenarios. Constructed with a copper alloy material and a red resin color, this assembly offers both durability and visual identification.
MOLEX 2157102122 Clik-Mate Male-to-Male Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin (Sn), 0.406µm min
- plating_termination: Tin (Sn), 0.406µm min
- net_weight: 0.557/g
- packaging_type: Bag
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_max_per_contact: 2.0A
- voltage_max: 100V AC (RMS)/DC
- rohs_status: Compliant
- reach_svhc: Not Contained
- halogen_free: Not Low-Halogen
