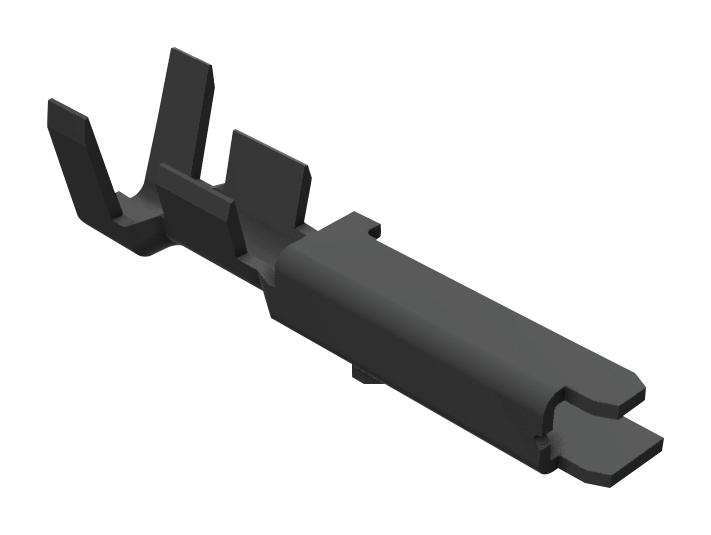

MOLEX 5034291000 Wire-to-Board Terminal
The CLIK-Mate 1.50mm pitch wire-to-board crimp terminal features gold plating for reliable electrical connection across 26-30 AWG wires. Its design supports up to 30 mating cycles, with a maximum current of 1.5A and voltage of 100V AC/DC. Crafted from copper alloy with gold over nickel plating on the mating interface and tin on the termination, it offers excellent durability and corrosion resistance. Suitable for applications requiring secure and reusable wire connections, the terminal is compatible with CLIK-Mate housings and designed for ease of crimping using specific tooling. Ideal for electronics, industrial equipment, and control systems.
MOLEX 5034291000 Wire-to-Board Terminal Specifications:
- Pitch: 1.50 mm
- Wire Size: 26-30 AWG (0.05-0.13 mm²)
- Material - Metal: Copper Alloy
- Plating - Mating: Gold over Nickel
- Plating - Termination: Tin
- Durability: Up to 30 mating cycles
- Current Capacity: 1.5A
- Voltage Rating: 100V AC/DC
- Wire Insulation Diameter: 0.70-1.02 mm
- Net Weight: 41.000 mg per terminal
- Packaging: Reel, 5025791 (100 pieces per bag)
- Compatibility: CLIK-Mate housing, suitable with crimp tools for 1.50 mm pitch
- Standards: RoHS compliant, Low-Halogen, IEC ELV not relevant
Buy the Molex Series CLIK-Mate Wire-to-Board Terminal: 5034291000
Secure your electronic assemblies with the Molex CLIK-Mate wire-to-board crimp terminal. Designed for 26-30 AWG wires, it offers gold plating for durability, a maximum current of 1.5A, and a voltage rating of 100V AC/DC. Its robust copper alloy construction with gold over nickel and tin plating ensures corrosion resistance and long-term reliability, supporting up to 30 mating cycles. Ideal for industrial, control, and electronic applications, buy online today for high-quality, dependable connections that meet industry standards and enhance device performance.
Buy Molex 5034291000 now and experience unmatched reliability and performance in secure, reusable wire connections for your electronic projects.
