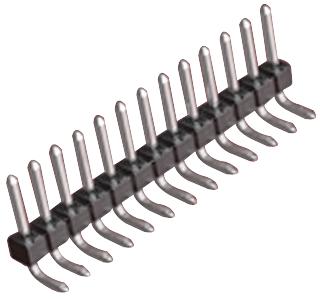

MOLEX 22286362 Breakaway Header
The MOLEX 22-28-6362 is a KK 254 breakaway header, offering a versatile solution for board-to-board interconnects. Its right-angle design allows for efficient space utilization in compact electronic assemblies. With 36 circuits and gold selective plating, this header ensures reliable signal transmission and excellent durability. The header is designed for applications in various industries, including consumer electronics, industrial automation, and automotive systems. Its breakaway feature simplifies assembly and maintenance, making it a practical choice for both prototyping and high-volume production.
MOLEX 22286362 Breakaway Header Specifications:
- circuits_loaded: 36
- circuits_maximum: 36
- color_resin: Black
- durability_mating_cycles_max: 25
- flammability: 94V-0
- glow_wire_capable: No
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 2.664
- number_of_rows: 1
- orientation: Right Angle
- pc_tail_length_mm: 3.05
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Bag
- pitch_mating_interface_mm: 2.54
- plating_min_mating_um: 0.381
- plating_min_termination_um: 2.540
- polarized_to_mating_part: No
- polarized_to_pcb: No
- shrouded: No
- stackable: No
- surface_mount_compatible_smc: No
- temperature_range_operating_c: See Product Specification
- termination_interface_style: Through Hole
- current_max_per_contact_a: 4.0
- voltage_max_v: 500
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temp: 001
- process_temperature_max_c: 260
- duration_at_max_process_temperature_seconds: 005
- engineering_number: 42376-0071
- packaging_specification: PK-40873-0041-001
- product_specification: PS-10-07-001
- sales_drawing: SD-42376-001-002
