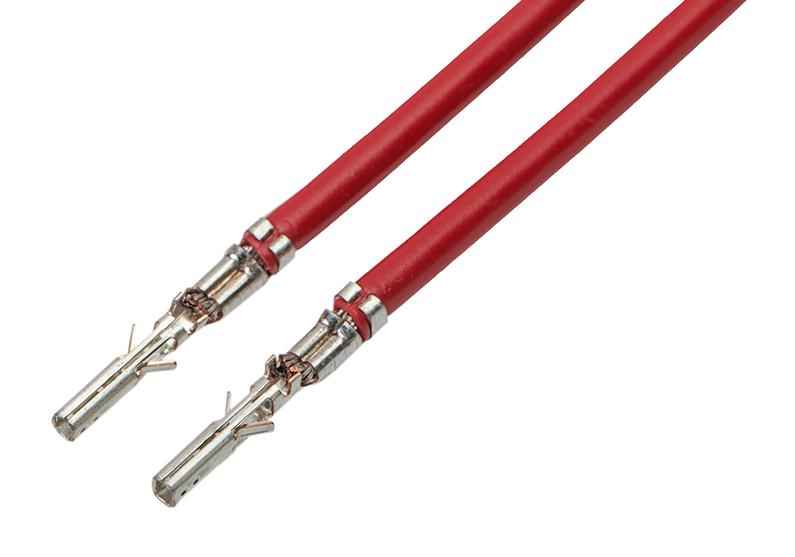

MOLEX 2147602222 Micro-Fit 3.0 Female-to-Female Lead
Pre-crimped lead connectors designed for Micro-Fit 3.0 systems, featuring gold (Au) plating, 150mm length, 18 AWG wire, and a female-to-female configuration. These leads are ideal for reliable power and signal connections in wire-to-wire and wire-to-board assemblies. Made with phosphor bronze metal and tin plating, they ensure durable, corrosion-resistant contact points. Suitable for various electronic applications demanding high current capacity up to 8.5A, these pre-crimped leads simplify assembly and maintenance with off-the-shelf availability, supporting efficient product design and manufacturing processes.
MOLEX 2147602222 Micro-Fit 3.0 Female-to-Female Lead Specifications:
- Series: 214760
- Application: Power, Wire-to-Wire, Wire-to-Board
- Color - Resin: Red
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Cable Length: 150.00mm
- Wire Size AWG: 18
- Wire Insulation Diameter: 1.85mm max.
- Electrical Current - Maximum per Contact: 8.5A
- Net Weight: 1.849g
- Contact Interface Style: Crimp or Compression
- RJ: 2.540um (mating plating min.), 0.762um (termination plating min.)
- UL Certification: UL 10002
- Color: Red
- Application: Power connections in electronics and automation equipment
- RoHS Compliance: Yes
- Halogen-Free: No
Buy the Molex Series 214760 Micro-Fit 3.0 Female-to-Female Power Connector: 2147602222
Purchase the Molex Micro-Fit 3.0 Female-to-Female pre-crimped leads online today to streamline your electronic assembly process. These high-quality, gold-plated connectors are 150mm long with 18 AWG wiring, providing a secure and efficient connection for power and signal transfer. Designed to handle up to 8.5A, they are ideal for wire-to-wire and wire-to-board applications. Reliable and RoHS compliant, these leads simplify installation and maintenance, making them a smart choice for manufacturing, automation, and electronic device projects.
Order your Molex Series 214760 Micro-Fit 3.0 Female-to-Female connector today and ensure reliable, high-current power and signal connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 2147602222?
You can click on the BUY or RFQ button to purchase 2147602222 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147602222?
You can download the 2147602222 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147602222?
MOLEX
