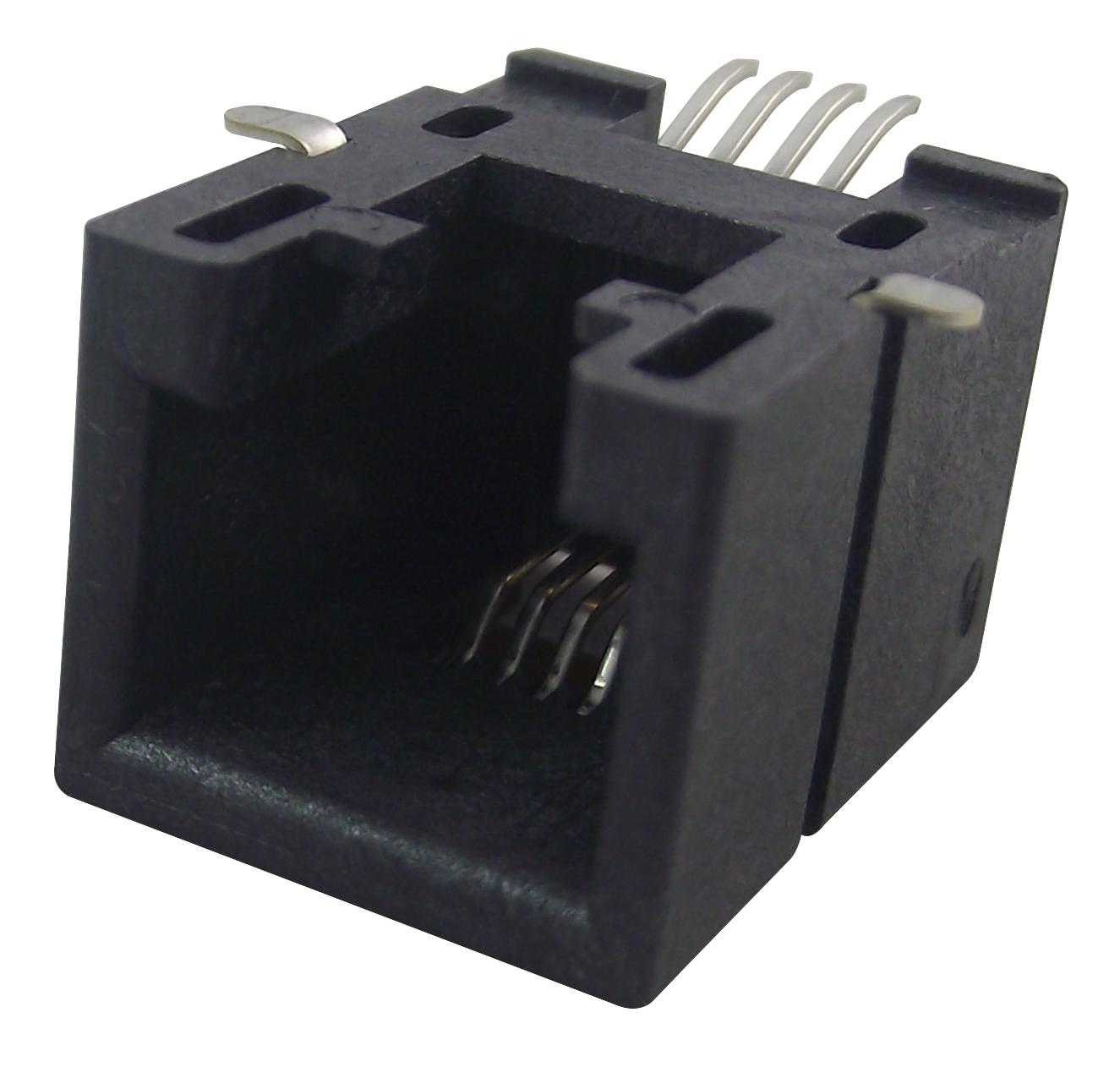

MOLEX 855025006 Modular Jack
This modular jack features a right-angle, surface-mount design with a 6/4 configuration, low profile, and tape & reel packaging, suitable for power over Ethernet (PoE) applications. Constructed with high-temperature thermoplastic, gold-over-palladium-nickel plated copper alloy contacts, and rated for a maximum of 125V DC and 1.5A per contact. It supports up to 2,500 mating cycles, operates within -40°C to +85°C, and complies with RoHS and halogen-free standards. Designed for durability and reliable performance in modern network infrastructure.
MOLEX 855025006 Modular Jack Specifications:
- Component Type: Magnetic
- Series: 85502
- Performance Category: Power over Ethernet (PoE)
- Durability: Up to 2,500 mating cycles
- Flammability: UL 94V-0
- Boot Color: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Dimensions: Jack height 11.50mm, right-angle side entry
- Operating Temperature Range: -40°C to +85°C
- Voltage - Maximum: 125V DC
- Current - Maximum per Contact: 1.5A
- Packaging: Embossed tape on reel
- Soldering Process: Reflow (max temp 260°C, duration 45 sec, 3 cycles)
Buy the Molex Series 85502 Modular Jack: 855025006
Buy the Molex Series 85502 right-angle surface mount modular jack today and enhance your network installations with a durable, high-quality component. This 6/4 configuration offers a low-profile design ideal for space-constrained environments, supporting PoE applications with a maximum voltage of 125V DC and current of 1.5A per contact. Manufactured with high-temperature thermoplastic and gold-plated contacts, it withstands up to 2,500 mating cycles, ensuring long-lasting performance. Its RoHS and halogen-free compliance makes it suitable for modern, environmentally conscious wiring projects. Available in tape & reel packaging for easy automated assembly.
Order your Molex Series 85502 modular jack with right-angle surface mount design today and ensure reliable, high-performance connections for your PoE networking projects.
Frequently Asked Questions
Where can I buy MOLEX 855025006?
You can click on the BUY or RFQ button to purchase 855025006 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 855025006?
You can download the 855025006 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 855025006?
MOLEX
