MOLEX 2147611111 Micro-Fit Power Lead

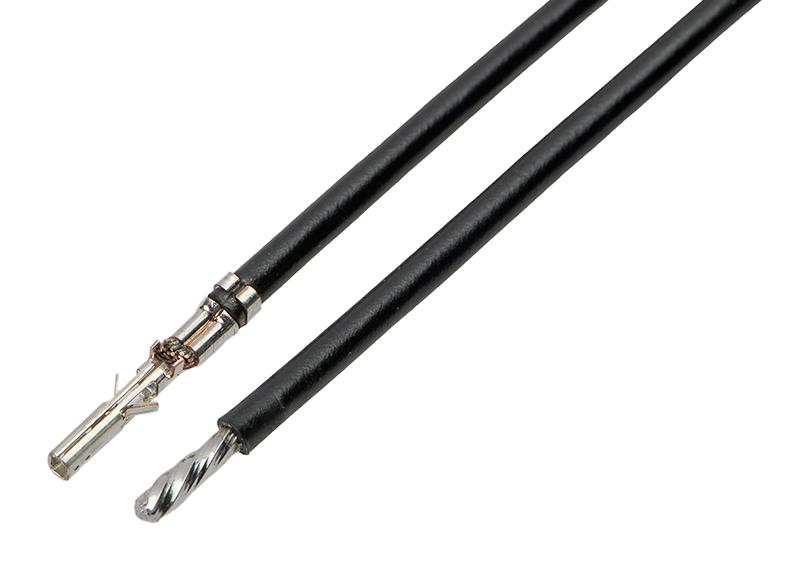

The Micro-Fit 3.0 Female-to-Pigtail Pre-Crimped Lead is a high-quality, tin-plated, 75 mm length wire designed for power and wire-to-wire or wire-to-board applications. It features a 20 AWG wire size, black color, and a female connector interface suitable for crimp or compression terminations. Made of phosphor bronze, it ensures reliable electrical connections with a maximum current of 8.5A per contact. Compatible with Micro-Fit 3.0 receptacle housings and panel mount options, this lead is RoHS and REACH compliant, offering durability and safety for industrial use.
MOLEX 2147611111 Micro-Fit Power Lead Specifications:
- Wire Size: 20 AWG
- Length: 75.00 mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating & Termination: Tin
- Color: Black
- Termination Interface: Crimp or Compression
- Maximum Current: 8.5A
- Wire Insulation Diameter: 1.016 meters (length of lead)
- Applicable with Micro-Fit 3.0 Receptacles and Housings
- RoHS, REACH compliant, Halogen-Free, not low-halogen
- UPC: 193264574179
- Net Weight: 0.633 grams
Buy the Buy Micro-Fit 3.0 Female-to-Pigtail Part Number 2147611111 Online
Order the Micro-Fit 3.0 Female-to-Pigtail Part Number 2147611111 online today. Designed for power and signal connections, this 75 mm crimped lead features tin plating for corrosion resistance, 20 AWG wire size for high current capacity, and black color for easy identification. It is compatible with Micro-Fit 3.0 connectors and housings, ensuring secure electrical connections. Certified RoHS and REACH compliant, it provides durability, safety, and optimal performance for industrial electronic applications. Buy now for reliable connectivity.
Get Micro-Fit 3.0 female-to-pigtail 2147611111 today—built for reliable power connections and long-lasting industrial performance.
Frequently Asked Questions
Where can I buy MOLEX 2147611111?
You can click on the BUY or RFQ button to purchase 2147611111 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147611111?
You can download the 2147611111 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147611111?
MOLEX
