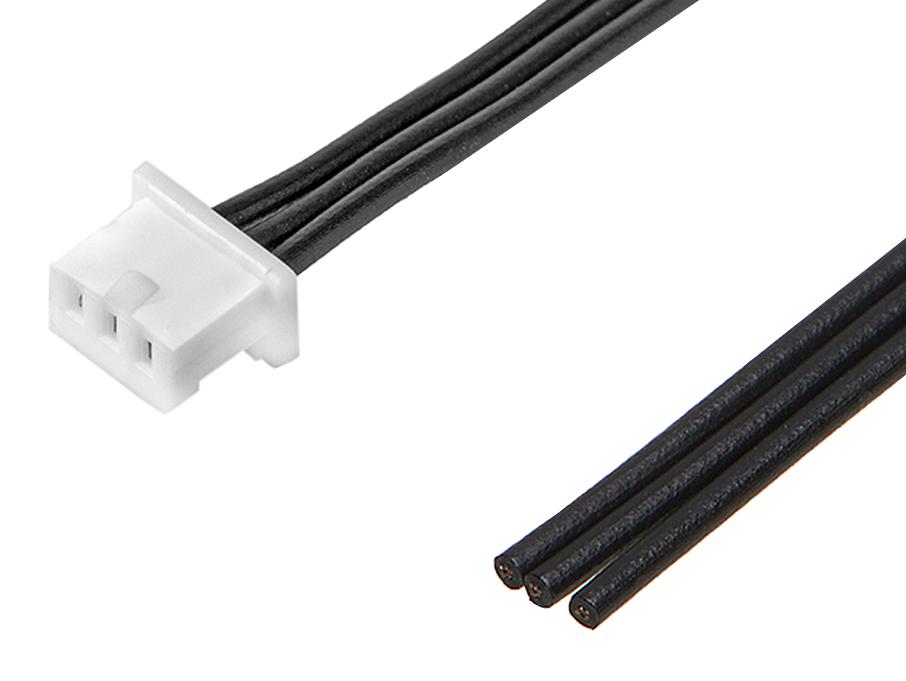

MOLEX 2181120302 PicoBlade Connector System
This PicoBlade female-to-pigtail cable assembly from the 218112 series offers a reliable and compact wire-to-wire connection solution. Featuring a single-row, natural-colored connector with a 1.25mm pitch, it is designed for signal applications in electronics and automation systems. The assembly includes phosphor bronze contacts with tin plating for durable mating and termination. It uses polyester resin insulation, supports crimp or compression termination styles for 28 AWG wires, and is suitable for prototyping or production. The assembly ensures efficient, stable connections in various electronic projects and industrial applications, complying with RoHS standards.
MOLEX 2181120302 PicoBlade Connector System Specifications:
- Cable Length: 225.00mm
- Circuits (Loaded): 3
- Color - Resin: Natural
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Wire Size AWG: 28
- Wire Insulation Diameter: 0.50-1.00mm
- Pitch - Mating Interface: 1.25mm
- Termination Interface: Style: Crimp or Compression
- Supports UL 1061 wires
- Compatible with PicoBlade headers and plug housings
- RoHS and China RoHS compliant
- Assembly Type: Overmolded, Connector to Connector
Buy the Molex 2181120302 – Reliable PicoBlade for Industrial Applications
Enhance your electronic and industrial projects with the Molex PicoBlade female-to-pigtail cable assembly. Featuring a compact 1.25mm pitch, 3 circuits, and durable tin-plated contacts, this assembly offers reliable wire-to-wire connections for signal applications. The crimp or compression termination options support 28 AWG wires, making it versatile for prototyping, testing, and production. Its polyester resin insulation and overmolded design ensure stability and safety, while adhering to RoHS standards. Purchase online today for quality, efficiency, and seamless integration in your next project.
Order your Molex Series 218112 PicoBlade female-to-pigtail cable assembly today and ensure your electronic projects have dependable and efficient wire connections.
Frequently Asked Questions
Where can I buy MOLEX 2181120302?
You can click on the BUY or RFQ button to purchase 2181120302 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2181120302?
You can download the 2181120302 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2181120302?
MOLEX
