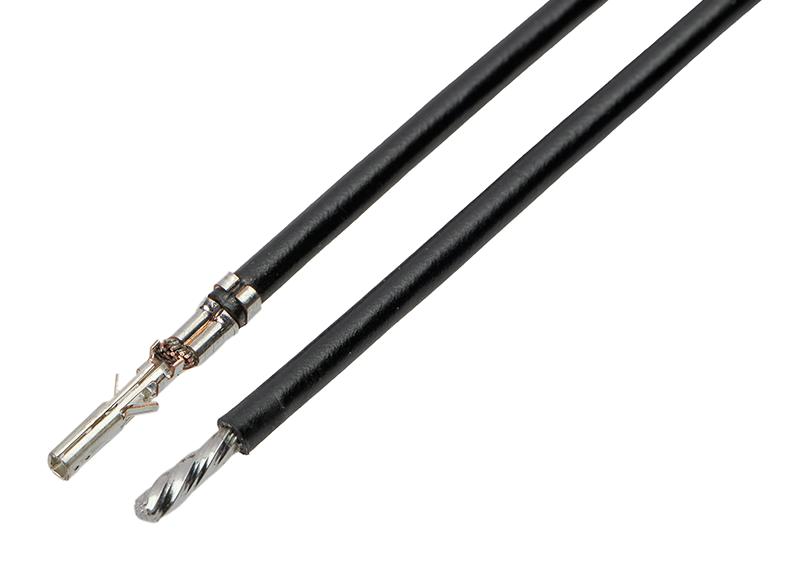

MOLEX 2147611125 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 214761-1125 is a pre-crimped lead assembly designed for reliable power and signal transmission in various applications. This assembly features a Micro-Fit 3.0 female connector on one end and a pigtail configuration on the other, offering flexibility in connecting wires to boards or other devices. The tin plating ensures excellent conductivity and corrosion resistance, while the 450mm length provides ample reach for diverse system layouts. It is RoHS compliant and suitable for wire-to-board and wire-to-wire connections.
MOLEX 2147611125 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail, Tin (Sn) Plated, 450.00mm Length, 18 AWG, Black
- product_family: Cable Assemblies
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- crimp_terminals: Micro-Fit 3.0 Crimp Terminals
- cable_length: 450.00mm
- wire_size: 18 AWG
- circuits_loaded: 1
- color: Black
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- current_maximum_per_contact: 8.5A
- single_ended: Yes
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- upc: 193264574261
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free: Yes
- elv: Not Relevant
- rohs_phthalates: Not Contained
- sales_drawing: 2147611121-000
Buy the 214761-1125 MOLEX Micro-Fit 3.0 Female-to-Pigtail | myMectronic
Purchase the MOLEX 214761-1125 Micro-Fit 3.0 Female-to-Pigtail connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2147611125?
You can click on the BUY or RFQ button to purchase 2147611125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147611125?
You can download the 2147611125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147611125?
MOLEX
